I-7590
RS-232/RS-422 RS-485 to M-Bus Converter
Features
- Serial Baud and M-Bus Baud can be configured separately
- Provides 10 kinds of Baud for default, 6 kinds of Baud for user-defined
- Supports up to 100 M-Bus slaves
- Provides transparent communication
- Watchdog inside
- Allows updating firmware by the RS-232 port
- Overcurrent and short-circuit protection on the M-Bus port
- 3750 Vrms photocouple isolation on the M-Bus port
- ±4 kV ESD to contact
- Reverse polarity protection on power
Introduction
The I-7590 is specially designed for M-Bus slave device. It is a serial bus to M-Bus convertor. First, for serial bus, it offers RS-232, RS-422 and RS-485 three kinds of communication way. Second, the I-7590 has two rotary switches, one for serial port baud and the other for M-Bus port baud. Third, the I-7590 uses transparent transmission between serial bus and M-Bus communication. Through these three designs, it is easy to communicate with any standard M-Bus slave.
Applications
The M-Bus (Meter‐Bus) is a bus optimized for the reading of measurement instruments like: energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc….
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/485/422, Non-isolated |
| Baud Rate | 300 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| M-Bus | |
|---|---|
| Ports | 1 |
| Baud Rate | 300 ~ 2400 bps and user-defined baud rate |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Isolation | 3750 Vrms for photo-couple |
| Current Protection | short-circuit protection |
| Power | |
|---|---|
| Consumption | 1.8 W @ 24 VDC (with 1 slave device), 11.8 W @ 24 VDC (with 100 slave devices) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 120 x 36 (W x H x D) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |

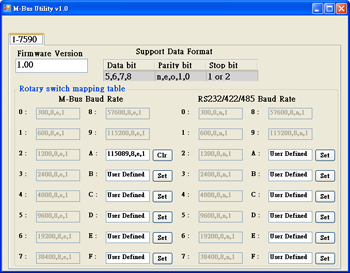

- Provide M-Bus user-defined baud rate
- Provide serial bus user-defined baud rate
- Check firmware version

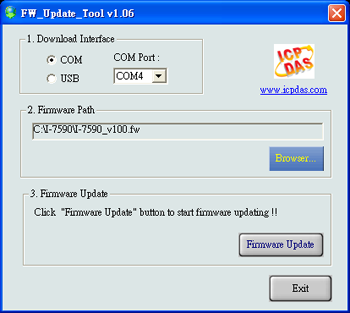

- Update firmware
|
Baud Rate Selection by Rotary Switch
|
||||||
| Switch Value | 0 | 1 | 2 | 3 | 4 | 5 |
| Baud [bps] | 300 | 600 | 1200 | 2400 | 4800 | 9600 |
| Switch Value | 6 | 7 | 8 | 9 | A ~ F | |
| Baud [bps] | 19200 | 38400 | 57600 | 115200 | User-defined | |
| The data format of serial bus baud rate of switch value 0 ~ 9 is 8, n, 1. The data format of M-Bus bus baud rate of switch value 0 ~ 9 is 8, e, 1. |
||||||
|
Execution Mode by DIP Switch
|
||
| DIP 1 (Init) | DIP 2 (Mode) | Description |
|---|---|---|
| OFF | OFF | Run Firmware |
| OFF | ON | Configure |
| ON | OFF | Update Firmware |
|
Support Meter
The following meters have been tested with the I-7590 communication: |
|||
| Manufacture | Picture | Model Type | Meter Type |
|---|---|---|---|
| Danfoss |  |
SONOMETER 500 | Heat Meter |
| SENSUS |  |
405S | Water Meter |
| WESER |  |
PUL | Heat Meter |
| DIEHL |  |
ALTAIR V4 | Water Meter |
| Wason |  |
LXZD-Y3 | Water Meter |
