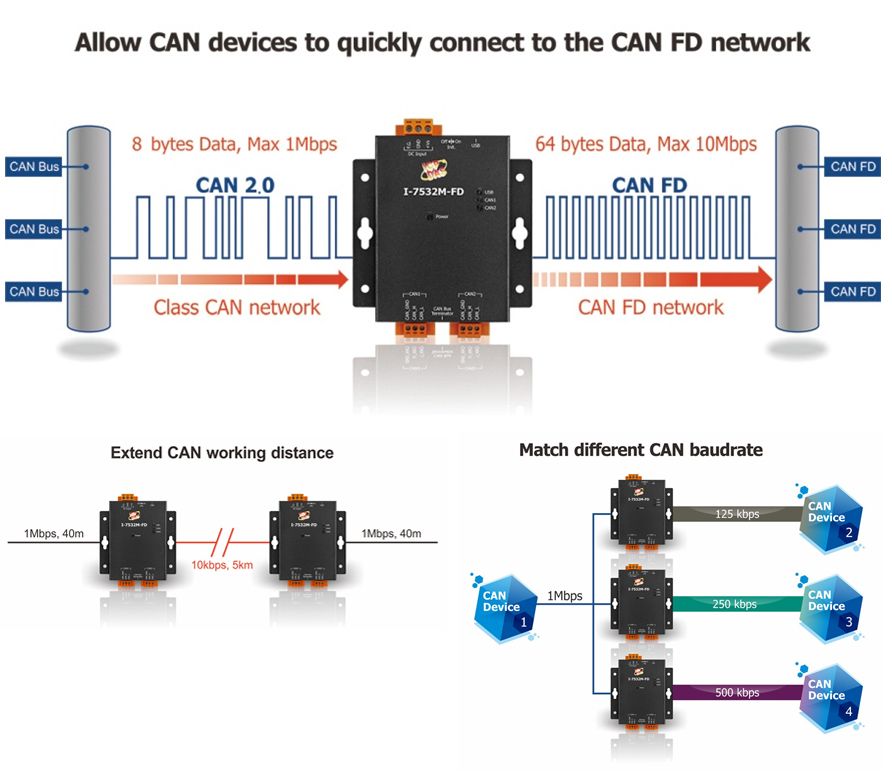

I-7532M-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN/CAN FD networks. It can increase the bus loading capacity, extend communication distance, connect CAN/CAN FD networks with different baud rate and support message transformation between CAN and CAN FD networks. I-7532M-FD supports message transformation from CAN to CAN, CAN to CAN FD, CAN FD to CAN and CAN FD to CAN FD. In addition, it also supports frame mapping rule, merging rule(combine multiple CAN messages to one CAN FD message) and splitting rule (split one CAN FD message to multiple CAN messages) for some specific messages transformation. Users can use these rules freely to meet specific requirements of their applications. After connecting USB port with PC, user can use I-7532-FD Utility tool to configure module’s baud rate and rules with ease.




Features:

• Compatible with the ISO 11898-2 standard.
• Compatible with CAN specification 2.0 A/B and FD.
• CAN FD support for ISO and Non-ISO (Bosch) standards switchable.
• CAN FD bit rates for data field from 100 kbps to 10000 kbps
• CAN bit rates from 10 kbps to 1000 kbps.
• Support CAN Bus message filter configuration. White-list filtering method and each port supports 128 groups of standard IDs and 64 groups of extended IDs.
• Support CAN/CAN FD frame forwarding rules, including basic forwarding rule, mapping rule, merging rule and splitting rule. When receiving a frame on one CAN port, this frame is processed via these rules and then send out to another port. The process priority level of these rules are “merging rule” = “splitting rule” > “mapping rule” > “basic forwarding rule”.
• Support CAN network status analysis via Utility tool.
• Messaging traffic of each port up to 10,000 fps.
• The baud rate of each port can be different for high flexibility.
• Built-in switchable 120 ohm terminal resistor for CAN network.
