Introduction:

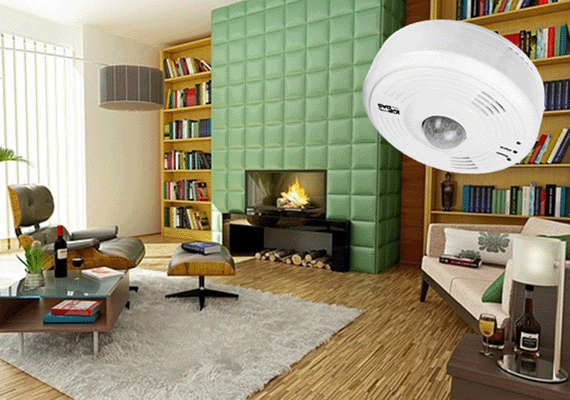

The PIR-130 module includes a 1-channel passive infrared (PIR) sensor that is able to detect infrared waves radiating from human in its field of view within a diameter of 8 meters with a coverage area of 360°. The PIR-130 is used for indoor motion detection, and can be configured to automatically switch on a light if motion is detected. The PIR-130 module also includes a 1-channel temperature sensor that can be used for measuring room temperature or can be configured to activate a fire alarm.



Features:

• 360° Motion Detection up to 8 m Diameter
• Time-Delay Settings/Lux Sense Settings/Sensitivity Settings
• LED Indicator for PIR/Temperature Sensor
• Temperature Sensor for Measuring Room Temperature or for Activating a Fire Alarm
• Relay Output can be used to Control a Light via the PIR/Temperature Sensor
• Loading Capability of up to 1500 W Incandescent or 300 W Fluorescent (T8)
• RS-485 Communication Interface
• DCON and Modbus RTU Protocols
• Ceiling Surface Mount Design

Applications:

• Public toilets, for lights and exhaust fans
• Public staircases
• Parking station lights
• Garden lighting
• Changing rooms in shops
• Corridor lighting and many others

For more information, refer to:
https://www.icpdas.com/en/product/guide+IIoT+IO_Sensor+PIR__Motion__Detector#578
