Introduction:

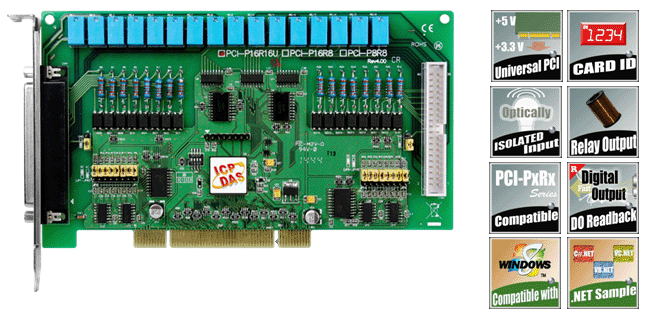

The PCI-P8R8U/P16R16U card is a new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-P8R8/P16R16. Users can replace the PCI-P8R8/P16R16 by the PCI-P8R8U/P16R16U directly without software/driver modification.

The PCI-P8R8U/P16R16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 8/16 photo-coupler Digital Input channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated to prevent from ground loops. They are also equipped with 8/16 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PCI-P8R8U/P16R16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.



Feature:
	Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
	Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.
	8/16 photocoupler digital input channels 8/16 relay output channels 5000 Vrms isolation protection DIO response time is about 250 μs (4 kHz max.) Selectable DC signal input filter AC Signal input with filter
	Compatible with software of PCI-P16R16 Series Fully compatible with the PCI-P8R8/P16R16 Series product
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	RoHs compliant & no Halogen



• For more information, please visit the PCI-P8R8U/PCI-P16R16U web site.
