EC4-DA4: EtherCAT SubDevice Slim Module with Isolated 12-bit, 4-ch Analog Outputs
New Products
2026-07-17
Introduction
The EC4-DA4 is a slim-type industrial I/O module featuring isolated 12-bit, 4-channel analog outputs. It communicates over EtherCAT, providing greater system scalability while reducing cabling requirements. Users can monitor the analog output data via software. The module has undergone conformance testing and works with a wide range of standard EtherCAT MainDevices for diverse applications.
Features
● Interface: EtherCAT
● Removable terminal-block connector
● Built-in isolation
● 12-bit,4-channel analog outputs

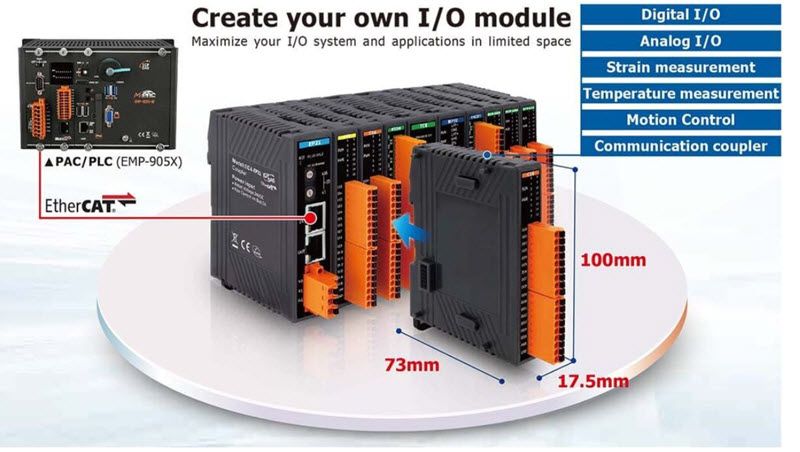

Application
Specifications
| Model | EC4-DA4 |
|---|---|
| Channels | 4-channel isolated analog outputs |
| Type | Voltage, Current |
| Range | ± 5V，± 10V，0 ~ 5V，0 ~ 10V，0 ~ 10mA，0 ~ 20mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR (25℃) |
| Cycle time | 100 μs |
| Distributed Clocks | Yes |
