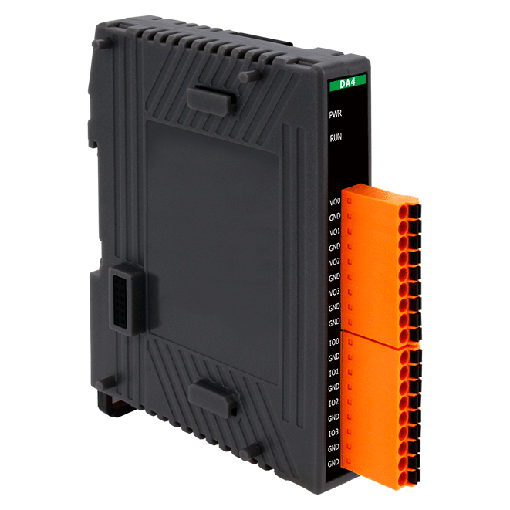

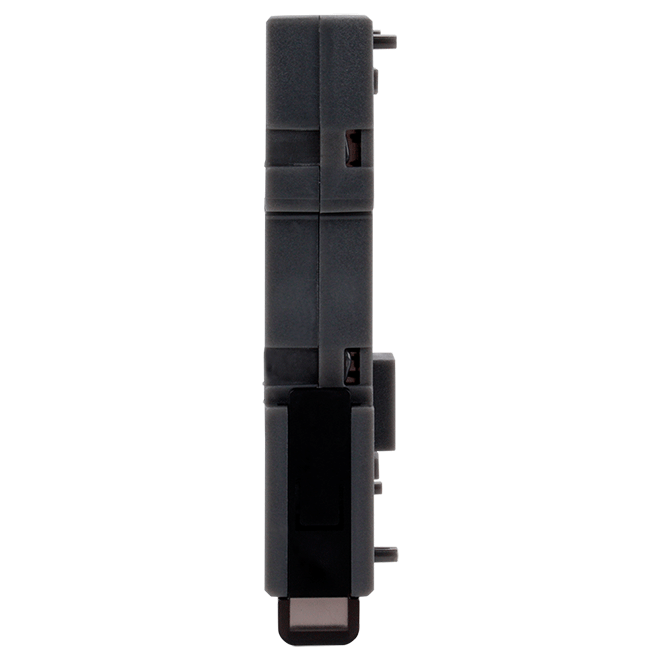

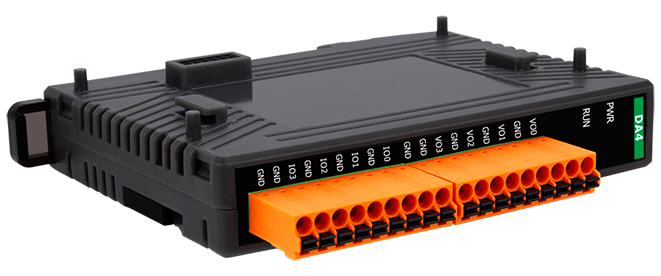

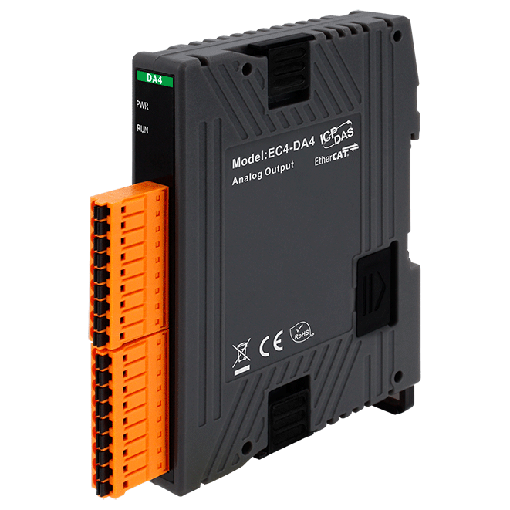

EC4-DA4
EtherCAT Slim I/O Module with Isolated 4-channel AO(Current and Voltage Output)
Features
- On the fly processing: EtherCAT
- EtherCAT conformance test tool verified
- Removable terminal block connector
- 12-bit Analog Output: 4-ch
- ESD Protection 4 KV Contact for each channel
Introduction
The EC4-DA4 features a slim design and is equipped with four 12-bit analog output channels. It has been verified by the conformance test tool and supports the EtherCAT protocol, offering enhanced scalability and reduced cabling. The EC4-DA4 can be easily operated by compatible EtherCAT MainDevice, facilitating the implementation of various applications.

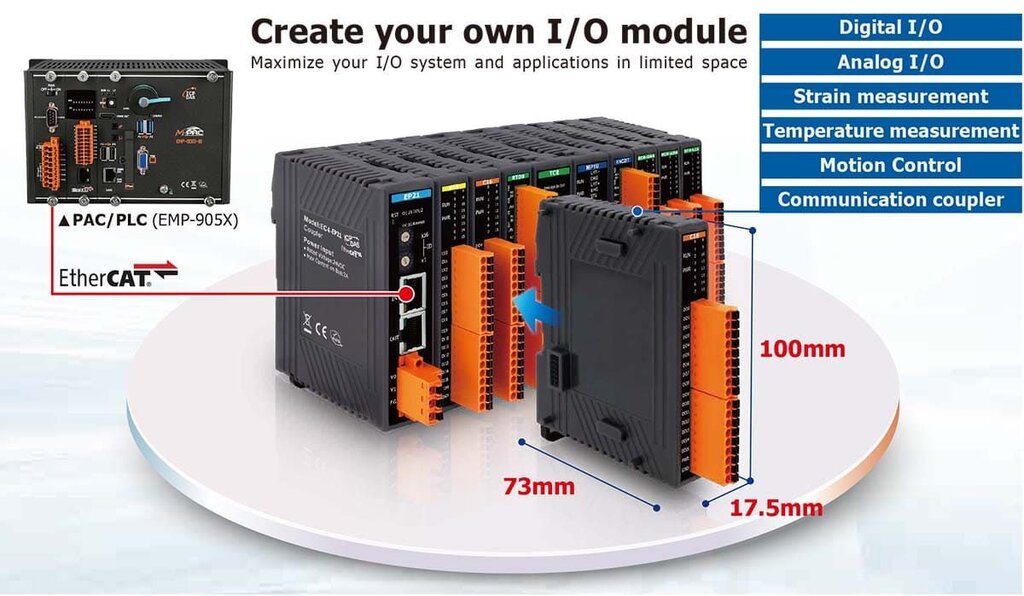

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 KV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 KV Class A |
| Analog Output | |
|---|---|
| Channels | 4 |
| Range | ±5 V, ±10 V, 0 ~ 5V, 0 ~ 10V, 0 ~ 10 mA, 0 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Zero Drift | ±30 μV/°C |
| Span Drift | ±5 ppm/°C |
| EtherCAT | |
|---|---|
| Cycle Time | 100 μs |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 90 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
