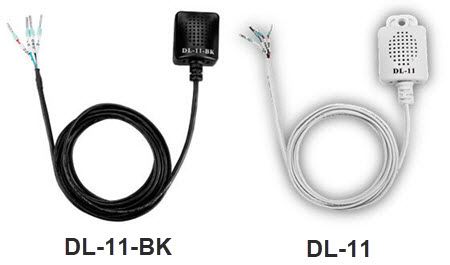

DL-11 & DL-11-BK – Remote Temperature/Humidity/Atmospheric pressure/Dew Point Sensing Module
New Products
2024-10-07
Introduction:
The DL-11 features an RS-485 interface and sensors that measure temperature, humidity, atmospheric pressure, and dew point. Through the Modbus RTU protocol, it provides real-time information on temperature, humidity, atmospheric pressure, and dew point .
The DCON Utility Pro software offers a simple interface for users to configure the module. The compact size of the DL-11 maximizes space efficiency, making it easy to install anywhere.
The DCON Utility Pro software offers a simple interface for users to configure the module. The compact size of the DL-11 maximizes space efficiency, making it easy to install anywhere.
Features:
- Measurement Ranges: -20 to +75 °C/0 to 95% RH/300 to 1200 hPa
- Accuracy: ±0.4°C; ±3.0% RH; 1 hPa
- Power Input Range: 10 to 30 VDC
- RS-485 communication interface
- Modbus RTU Protocol
Applications:
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Warehouses
- Museums, archives, galleries
Comparison of DL-10(-BK) and DL-11(-BK)
| DL-10、DL-10-BK | DL-11、DL-11-BK | |
|---|---|---|
| Mechanical | ||
| Temperature Measuring Range | -25 to +75 ℃ (-13 to +167 ℉) | |
| Humidity Measuring Range | 0 to 95% RH | |
| Atmospheric Pressure | Not supported | 300 to 1200 hPa |
| Dew Point | Yes | |
| Interface | RS-485; non-isolated | |
| Baud Rate | 1200 to 115200 bps | |
| Data Format | N,8,1 | |
| Protocol | Modbus RTU | |
| Input Voltage Range | +10 VDC to +30 VDC | |
| Dimensions (mm) | 25 x 20.2 x 30 | |
For more information, please visit the following website:
DL-11：https://www.icpdas.com/en/product/DL-11
DL-11-BK：https://www.icpdas.com/en/product/DL-11-BK
