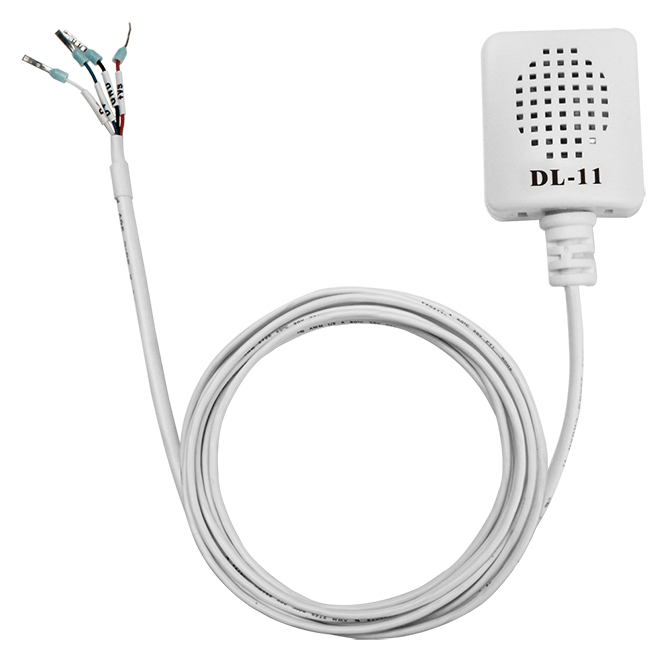

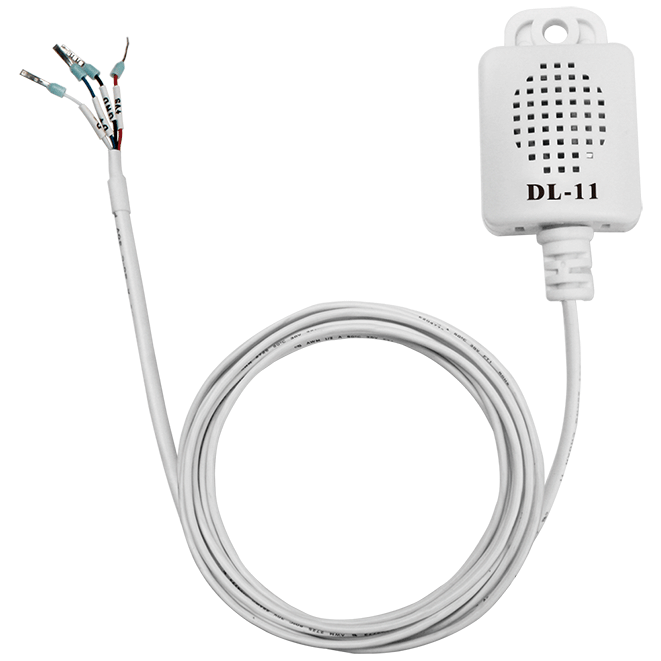

DL-11
Remote Temperature/Humidity/Atmospheric pressure/Dew Point Sensing Module
Features
- Measurement Ranges: -25 ~ +75°C / 0 ~ 95% RH / 300 ~ 1200 hPa
- Accuracy: ±0.4°C; ±3.0% RH ; 1 hPa
- 10 ~ 30 VDC Power Input
- RS-485 Communication interface
- Modbus RTU Protocol
Introduction
The DL-11 is able to provide real-time temperature, humidity, atmospheric pressure and dew point information by RS-485 with Modbus RTU protocol.
DCON Utility Pro provides easy and convenient interface for users to configure the module. Based on its amazing tiny size, the DL-11 achieves the goal of space-saving that allows it to be installed anywhere.
DCON Utility Pro provides easy and convenient interface for users to configure the module. Based on its amazing tiny size, the DL-11 achieves the goal of space-saving that allows it to be installed anywhere.
Applications
Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Temperature Measurement | |
|---|---|
| Range | -25 ~ +75°C (-13 ~ +167°F) |
| Resolution | 0.1°C |
| Accuracy | Typical: ±0.4°C |
| Precision | ±0.1°C |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 95% RH |
| Resolution | 0.1°C |
| Accuracy | Typical: ±3% RH @ 20 ~ 80% RH |
| Precision | ±0.1°C |
| Dew Point | |
|---|---|
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| Atmospheric Pressure | |
|---|---|
| Range | 300 ~ 1200 hPa |
| Accuracy | 1 hPa |
| Resolution | 0.1 hPa |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485, Non-isolated |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.05 W |

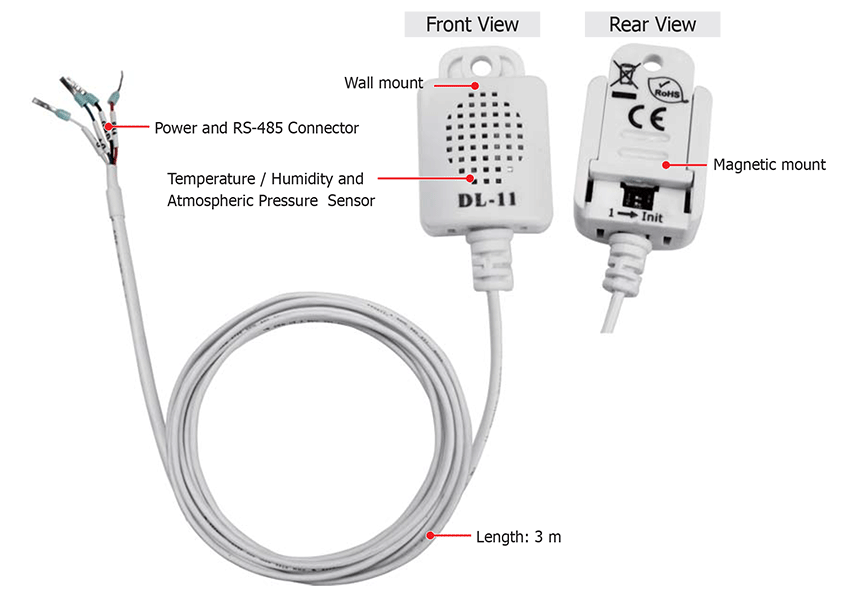

| Mechanical | |
|---|---|

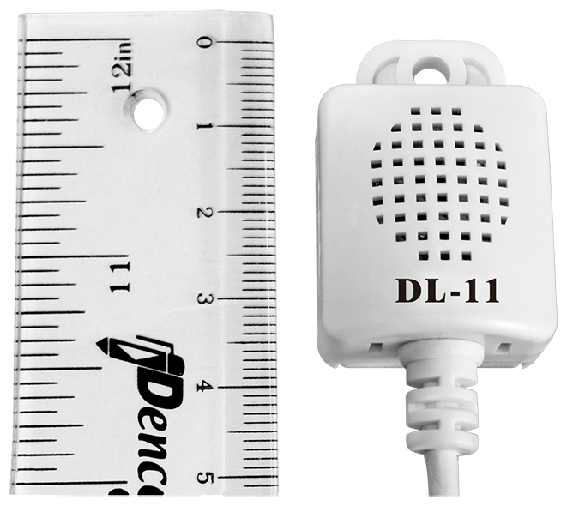

| Dimensions (mm) | 25 x 20.2 x 30 (W x L x H) |

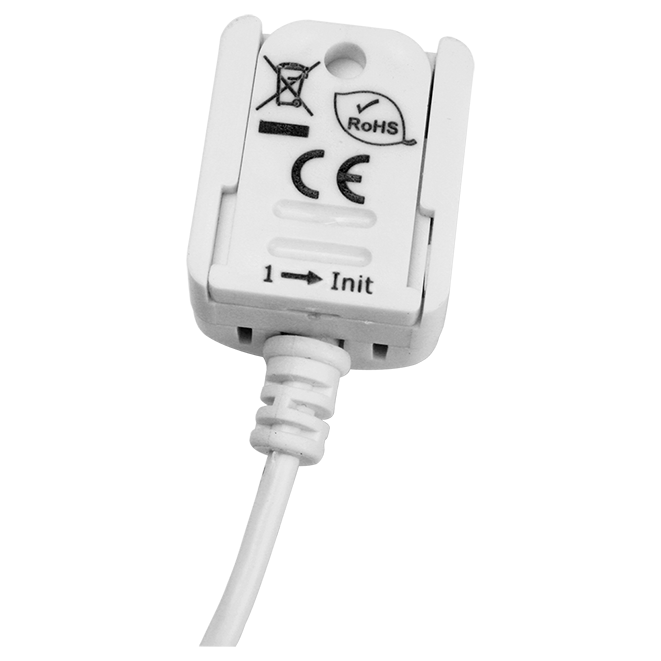

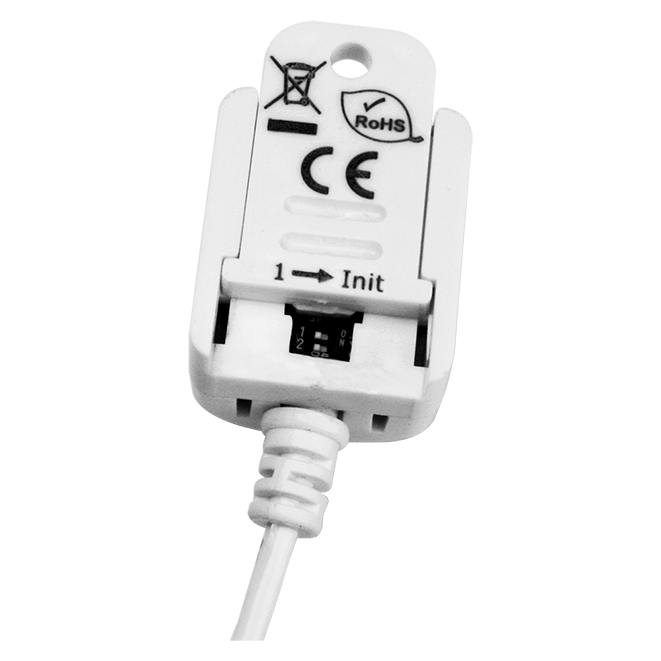

| Installation | Magnetic mount; Wall mount |
| Cable Length | 3 m |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 0 ~ 95% RH, Non-condensing |
