LC-101H and LC-102H – 1/2-CH Lighting Control Module
New Products
2024-09-30
LC-101H : 1-CH Lighting Control Module with AC Load Current Measurement (1 Relay output with 1 AC AI + 1 AC DI)
LC-102H : 2-CH Lighting Control Module with AC Load Current Measurement (2 Relay output with 2 AC AI + 2 AC DI)
Features
LC-102H : 2-CH Lighting Control Module with AC Load Current Measurement (2 Relay output with 2 AC AI + 2 AC DI)
Features

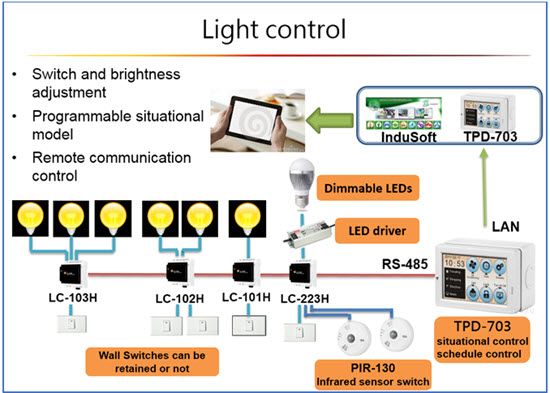

- Each lighting circuit can be controlled for on/off through RS-485 communication
- Each lighting circuit can also be controlled for on/off via physical switches
- Both communication-based remote control and physical switches can be used independently or in combination.

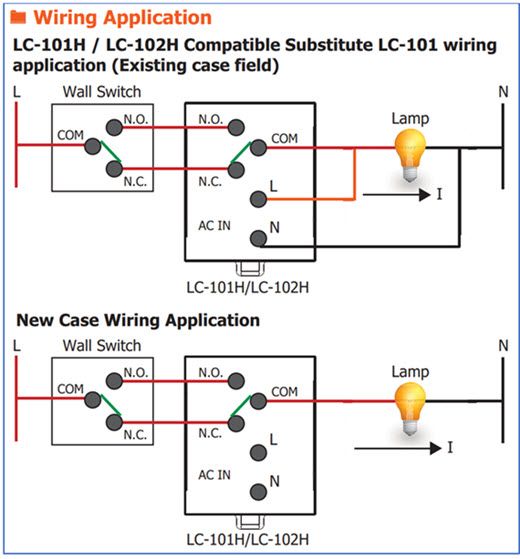

- The lighting circuit output relay is Form C, allowing for dual-loop designs with physical switches
- The current value on the lighting circuit can be read back via RS-485 communication, making it possible to detect faulty lights or check the on/off status of dual-loop circuits.
- The current range for each lighting circuit is from 0 to 5 A
- Recommended number of lights that can be connected:
- Incandescent Lamp: 40 W/ 220 VAC * 6 units
- LED(Electronic ballast): 40 W/ 220 VAC * 8 units
LC-10xH comparison table
| LC-101H | LC-102H | LC-103H | |
|---|---|---|---|
| Digital Input | 1 | 2 | 1 |
| Relay Output | 1 | 2 | 3 |
| Max. Load Current | 30 A ( Resistive Load, recommend working current is 1.0 A with 220VAC ) |
16 A ( Resistive Load, recommend working current is 1.5 A with 220VAC ) |
|
| Max. Lighting Loads | (1) Incandescent Lamp: 6 units (2) LED(Electronic ballast): 8 units |
(1) Incandescent Lamp: 8 units (2) LED(Electronic ballast): 10 units |
|
| Load Current Readback | Yes | No | |
| AC Load Current Measurement | 0 ~ 5 A | No | |
| Function | Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring | ||
