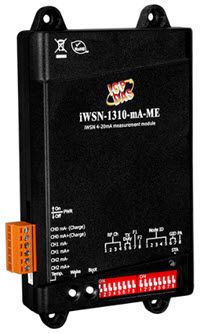

iWSN-1310-mA-ME – iWSN Current Sensing Module with 3-ch 4 to 20 mA Input and 1-ch Thermistor Input (Asia Only)
New Products
2024-09-23
Introduction：
The iWSN-1310-mA-ME sensing module is a self-powered module that supports 4mA to 20mA DC current and temperature measurement. It draws the necessary power from the measured current, eliminating the need for an external power supply. With its 433MHz RF communication interface, the iWSN-1310-mA-ME enables true wireless deployment. For ease of maintenance and installation, the iWSN-1310-mA-ME sensing module features configuration via DIP and rotary switches. With its excellent cost-effectiveness, the iWSN-1310-mA-ME sensing module is ideal for applications in energy saving, big data analysis, and predictive maintenance.
Features：
- Self-powered by built-in a chargeable Li-ion battery
- Support 4mA to 20mA DC measurement and charging
- Support temperature measurement
- Wireless communication via 433 MHz radio frequency
- 16 RF Channels and 4 Group ID, supporting up to 64 RF sub-networks
- Offers wall-mount mechanism and magnet for easy installation

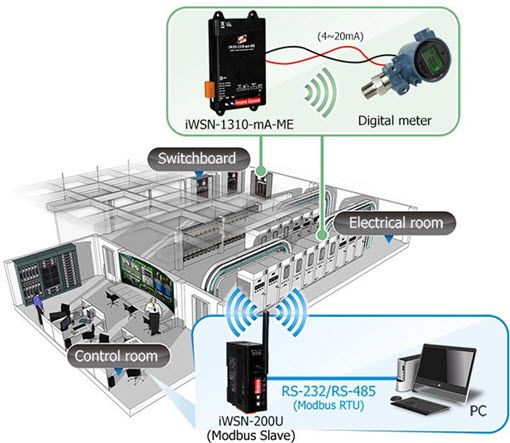

Applications：
For more information, please visit the following website:
https://www.icpdas.com/en/product/iWSN-1310-mA-ME
