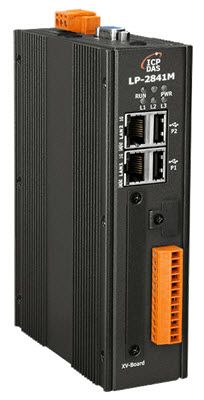

LP-2841M - Linux Based PAC with Cortex-A53 CPU and 2 LAN Ports
New Products
2023-10-18
Introduction
The LP-2841M is equipped with a Cortex-A53 (1.6 GHz, quad-core) CPU running a Linux operating system (Linux Kernel 5.4.70), a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools.
Main advantage of the LP-2841M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server.
Main advantage of the LP-2841M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server.
• Cortex-A53 (1.6 GHz, quad-core) CPU
• Linux kernel 5.4.70 Inside
• 2 GB RAM and 8 GB eMMC
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus (XV-Board)
• 10/100/1000M Dual Ethernet Port
• 4 Serial Ports (RS-232/485)
| Model | OS | CPU | System Memory |
Storge | VGA Resolution | Ethernet Port |
USB Port | Serial Port |
I/O Expansion |
|---|---|---|---|---|---|---|---|---|---|
| LP-2241M | Kernel 3.2.14 | Cortex-A8,1.0 GHz | 512MB DDR3 SDRAM |
512MB Flash 4GB SD Card |
1280 x 1024 | 2 | 2 | 4 | XV Board |
| LP-2841M | Kernel 5.4.70 | Cortex-A53 1.6 GHz, quad-core | 2GB DDR3 SDRAM |
8G eMMC 4GB SD Card |
1920 x 1080 |
For more information, please refer to:
https://www.icpdas.com/en/product/LP-2841M
