Introduction:

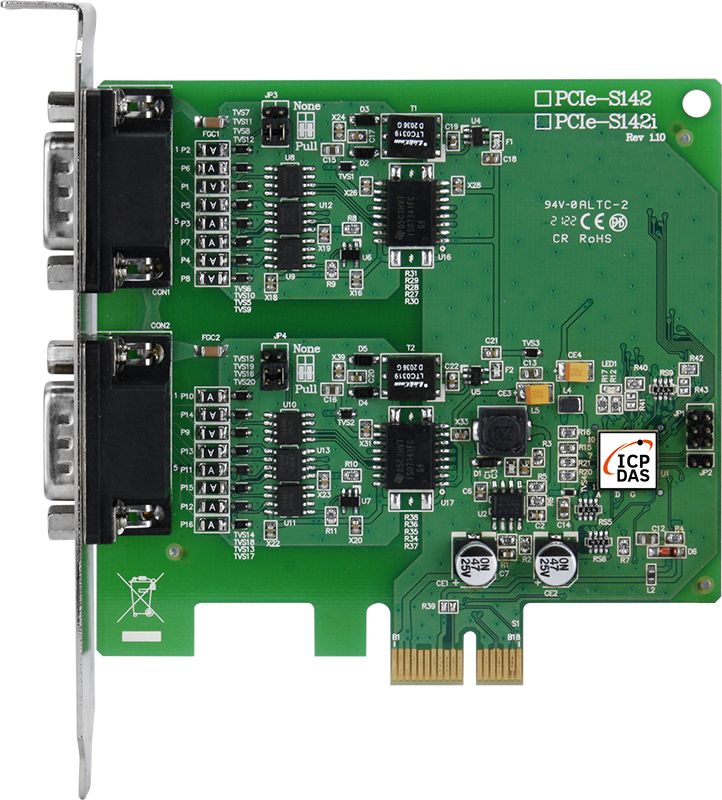

PCIe-S142i communication card provides 2 RS-422/485 serial ports. Each port is equipped with a 256-byte hardware FIFO, and offers speed up to 921600 bps. The PCIe-S142i card support drivers that allow to choose an available COM port number automatically.

In harsh industrial environments, the on-board ESD protection component diverts the potentially damaging charge away from sensitive circuit to protect the computer and equipment from being damaged by the sudden or momentary electric current.

The serial communication card is designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-422/485 port.




Hardware FIFO up to 256 bytes:

FIFO stands for "First In, First Out", an abstraction in ways of organizing and manipulating data relative to time and prioritization. FIFO is used for buffering and flow control while data come from hardware to software. When using hardware FIFO (buffer), a little delay on software or operating system will not lost data at all.


PCIe-S142i card are equipped with 256-byte hardware FIFO for each port. Large hardware FIFO is useful to prevent data lost when your system works on heavy loading, e.g. while running on a multi-task operating system, such as Windows, Linux… etc.



Feature:
	Supports PCI Express Automatically select COM port numbers Short Card Design
	256-byte hardware FIFO for each port
	Support Windows XP/2003/2008/Vista/7/8/10 32-/64-bit version OS
	RoHs compliant & no Halogen

For more information:
PCIe-S142i web site
https://www.icpdas.com/en/product/PCIe-S142i
