Introduction:

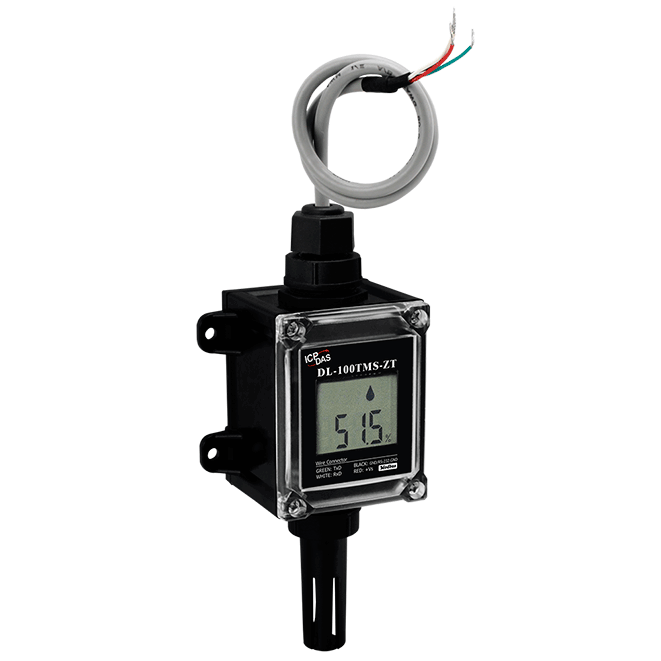

The DL-100TMS-ZT is a one-channel temperature and humidity data logger module. It contains a ZigBee communication interface and an LCM to display the module ID, temperature and humidity data, and allows you define the log time interval depending on your application.

The DL-100TMS-ZT supports the Modbus RTU protocol. We also provide software Utility that can be used to retrieve log data and display it in a chart on your desktop, and allow you to save the log data into an Excel format file.



Features：

• Measurement Ranges: -20 to +60°C and 0 to 100% RH
• Accuracy: ±0.4°C; ±2.0% RH
• LCD Display Shows Temperature, Humidity and Module ID
• 10 to 30 VDC Power Input
• IP66 Waterproof
• Data Logger Can Store Up to 510 Temperature and Humidity Records
• Modbus RTU Protocol
• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
• Wireless Transmission Range up to 100 m
• GUI Configuration Software (Windows Version)
• Supports AES-128 Encryption for the Wireless Communication (Passive)
• Supports ZigBee Repeater Function
• Surge and ESD Protection

Applications:

For more information about the product, please refer to the following website:
https://www.icpdas.com/en/product/DL-100TMS-ZT
