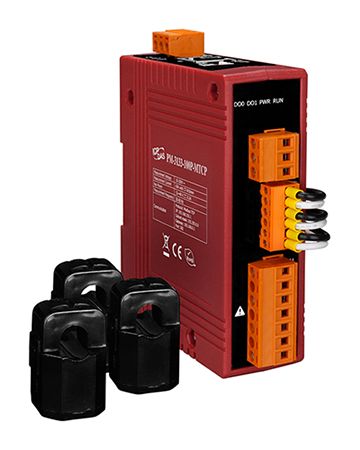

PM-3133-100P-MTCP: Modbus TCP, 3-Phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 3 (RoHS)
PM-3133-160P-MTCP: Modbus TCP, 3-Phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 3 (RoHS)
PM-3133-240P-MTCP: Modbus TCP, 3-Phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 3 (RoHS)



ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3133-MTCP series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3133-MTCP series can be applied to both low voltage primary side and/ or medium/high voltage secondary side. The users can obtain reliable and accurate energy consumption readings from the monitored equipment in real time. These compact size and cost-effective power meters are equipped with wired clip-on CT. It operates over a wide input voltages range 10 to 500 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus TCP protocols for easy integration.



Features:

• Bi-directional Energy
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 200 A
• Voltage Measurements Up to 500 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Total Harmonic Distortion (THD)
• Supports Modbus TCP Protocol
• Supports 2 Power Relay Output (Form A)
• Total Harmonic Distortion (THD)
• Multiple Data Format
