Introduction:

The ZT-2015 offers 6 RTD input channels, each of which can be connected to different kinds of RTD sensors. It features automatic compensation for 3-wire RTD, with long-distance measurement capabilities so that it can measure accurately regardless of the length of the wires. Also the ZT-2015 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.



Features:

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G /ZigBee Specifications
• Wireless Transmission Range up to 700 m
• GUI Configuration Software (Windows Version)
• 3-wire RTD Input with Lead Resistance Elimination
• Individual Channel Configuration
• Open Wire Detection
• Overvoltage Protection
• Surge and ESD Protection
• DIN-Rail Mounting

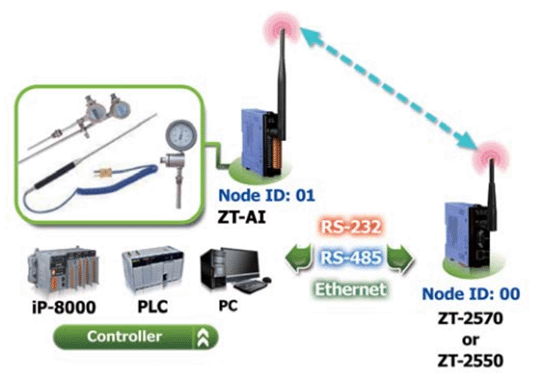

Applications:
