PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easy. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is perfect for factory automation, process automation, safety applications and motion control applications, etc.

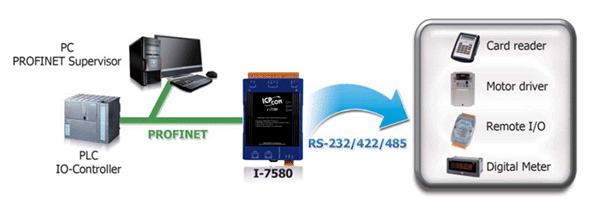

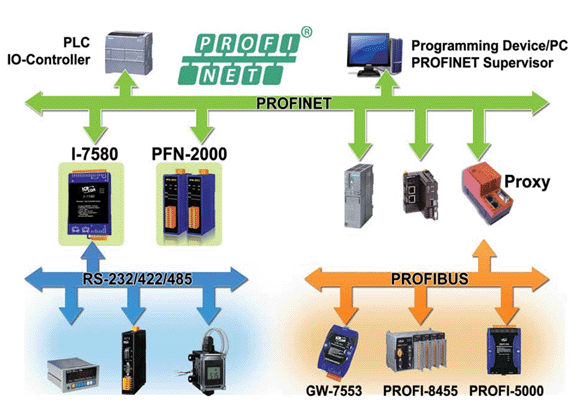

The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to include most serial devices such as: serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc. into a PROFINET network.




Features:

• Protocol: PROFINET IO Device
• Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
• Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided
• Max. Input/Output data :512/384 bytes
• Max transmission speed up to 460800 bps for COM port
• COM port driver has 10 KB QUEUE input buffer & 10 KB QUEUE output buffer
• Built-in self-tuner ASIC controller on RS-422/485 port
• Integrated 2-Port Switch
• Automatic MDI / MDI-X Crossover for Plug-and-play
• Provide LED indicators
• Robust, fan less design
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to +75°C)

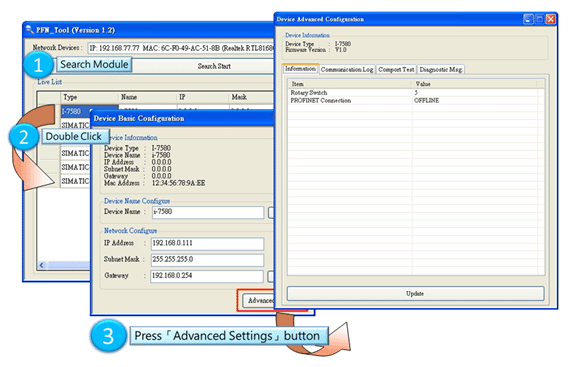

Utility:

• Provide device search function
• Show firmware version
• Support network parameters configuration
• Show module parameters of the I-7580
• Show diagnostic messages of the I-7580
• Provide comport test function
• Provide Communication Log of comport



PROFINET Converter & Gateway Products Comparison Table
