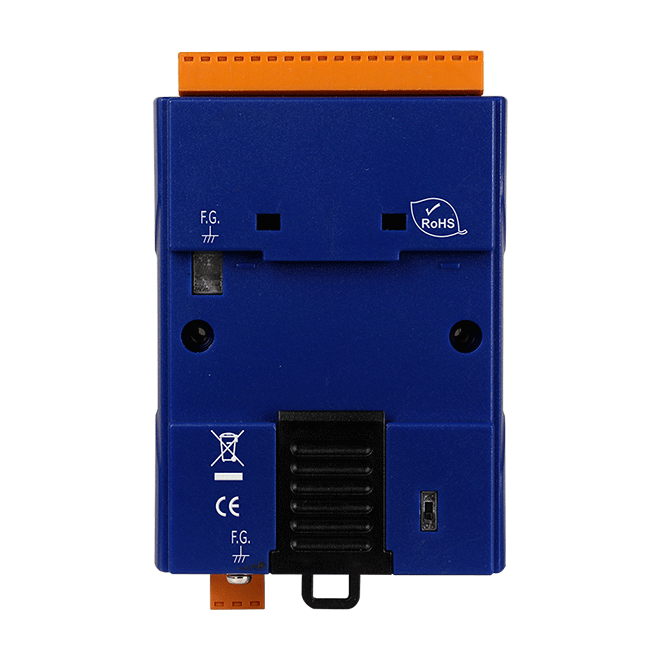

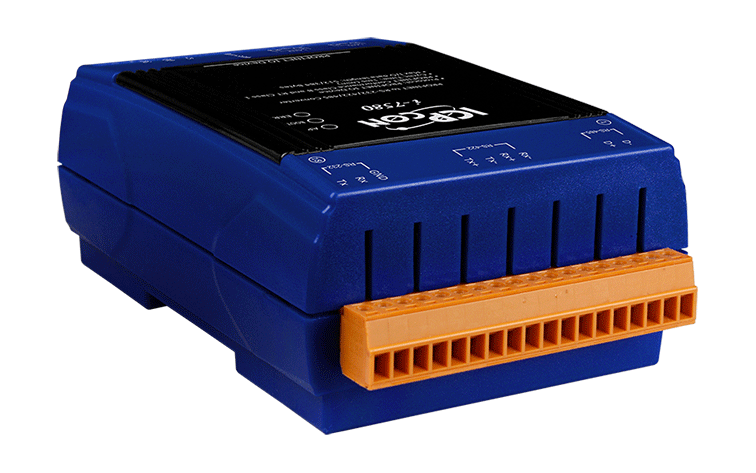

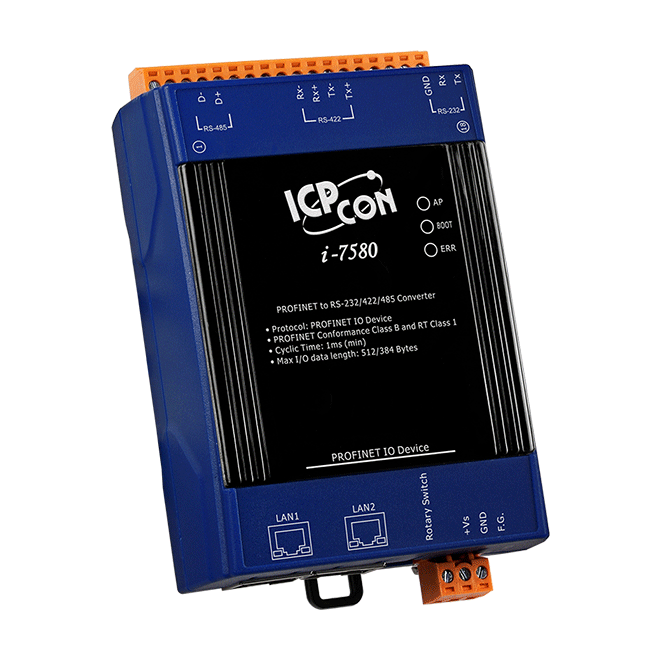

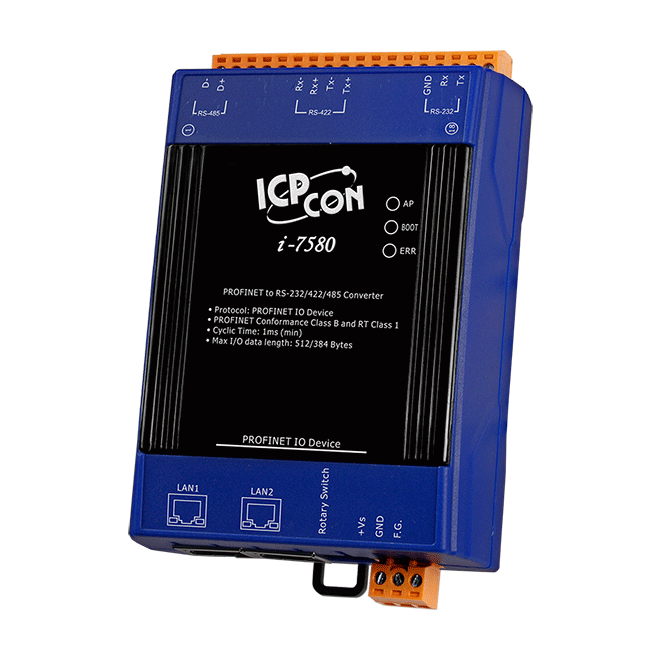

I-7580
PROFINET to RS-232/422/485 Converter
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Max length of input/output data is 512/384 Bytes
- 4 kV Contact ESD protection for any terminal
Introduction
The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to take almost serial device to a PROFINET network including serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
|---|---|
| Status | AP LED, BOOT LED, ERR LED |
| Ethernet | |
|---|---|
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| COM Ports | |
|---|---|
| Ports | RS-232/RS-422/RS-485 (can't be used simultaneously) 3-pin screwed terminal block (RxD, TxD, GND) 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-) 2-pin screwed terminal block (DATA+, DATA-) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| PROFINET | |
|---|---|
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
|---|---|
| Consumption | 3.4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 42 x 76 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |

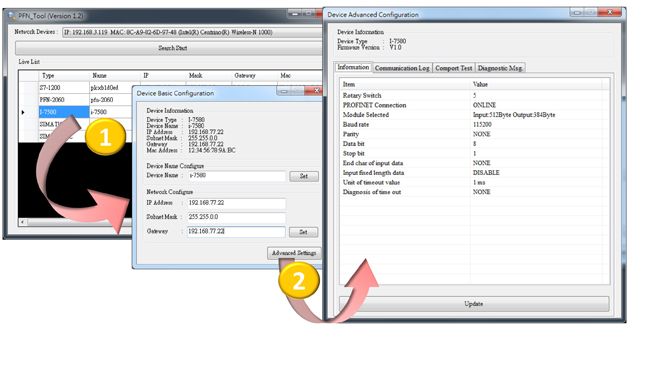

ICP DAS provides the PFN_Tool configuration utility to configure devices.
- Provide device search function
- Show firmware version
- Support network parameters configuration
- Show diagnostic messages of the I-7580
- Provide comport test function
- Provide Communication Log of comport
