ECAT-2611 – EtherCAT Slave to Modbus RTU Slave Gateway

New Products 2019-05-23

Introduction:

The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a Slave on both networks, allowing I/O data to be transferred between the two networks.

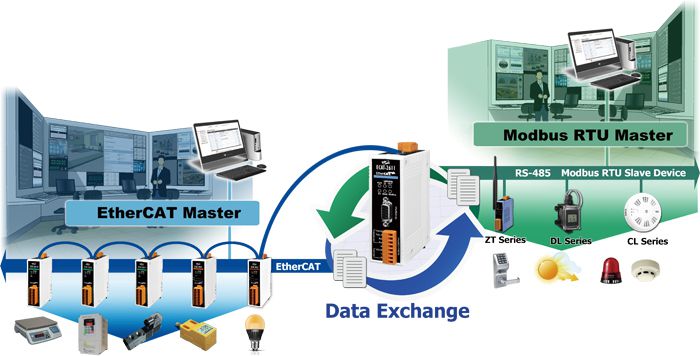

The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Master and the Modbus RTU Master) exchange data easily and faster for more diverse applications.

For more information, please refer to the following websites:
https://www.icpdas.com/en/product/guide+Industrial__Communication+Fieldbus__Communication+EtherCAT
https://www.icpdas.com/en/product/ECAT-2611

Features:

Powerful MCU handles efficient network traffic
Transfer of I/O data between two networks
2 x RJ-45 EtherCAT connectors
Supports maximum 256 WORD Input Data and 256 WORD Output Data
Supports serial port interface
○ Supports Modbus RTU (Slave) Protocol
○ Supports RS-232/422/485 Port
○ Supports maximum Baud Rate 115200 bps
○ Supports Modbus Function code 03, 04, 06, 16
Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
Requires no hardware or software changes to be made to the connected device
Compatible with all PLCs with EtherCAT support
Performs complete serial protocol conversion, no PLC function blocks required
RoHS compliant

For more relative products information, please visit the EtherCAT Selection Guide web site.
