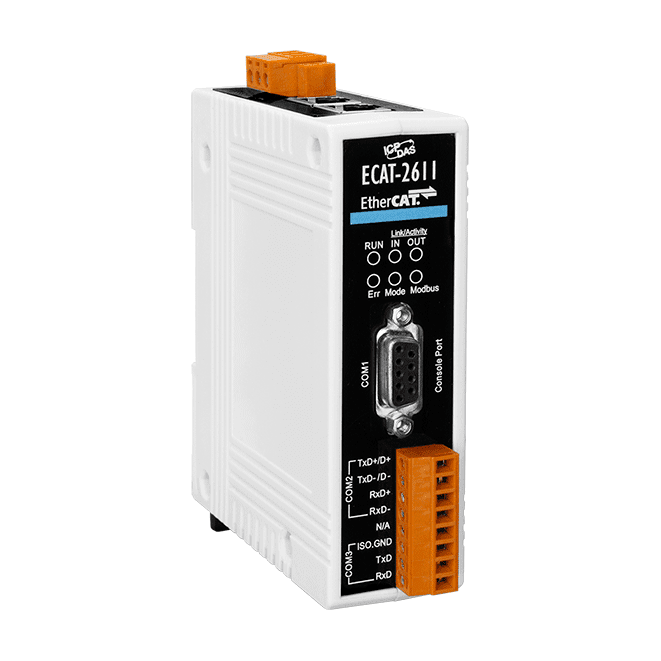

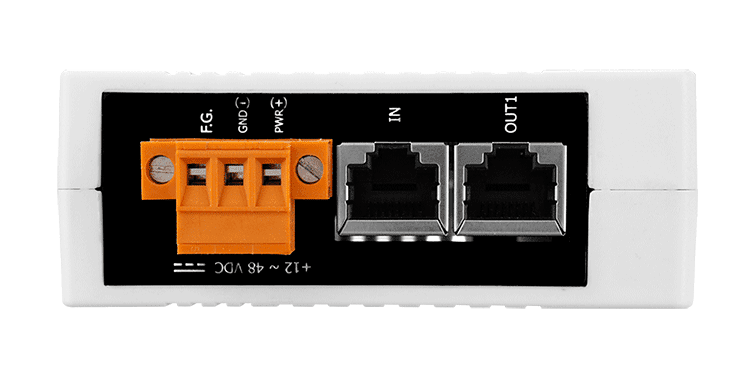

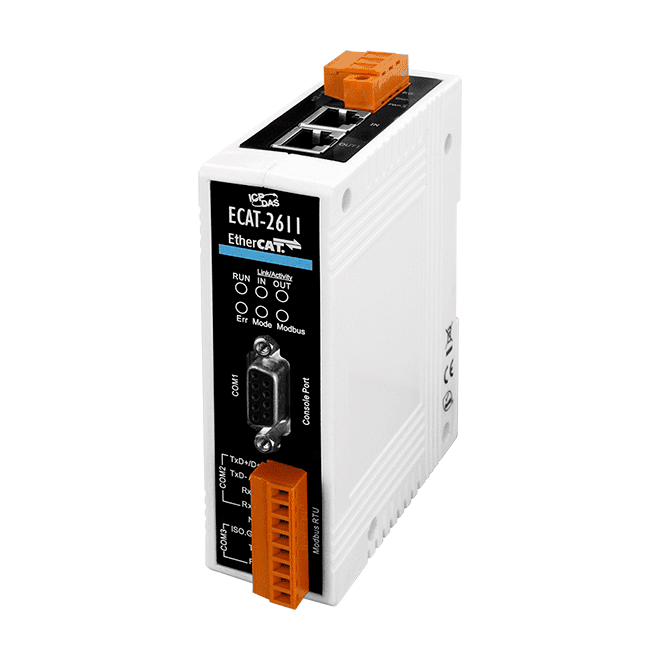

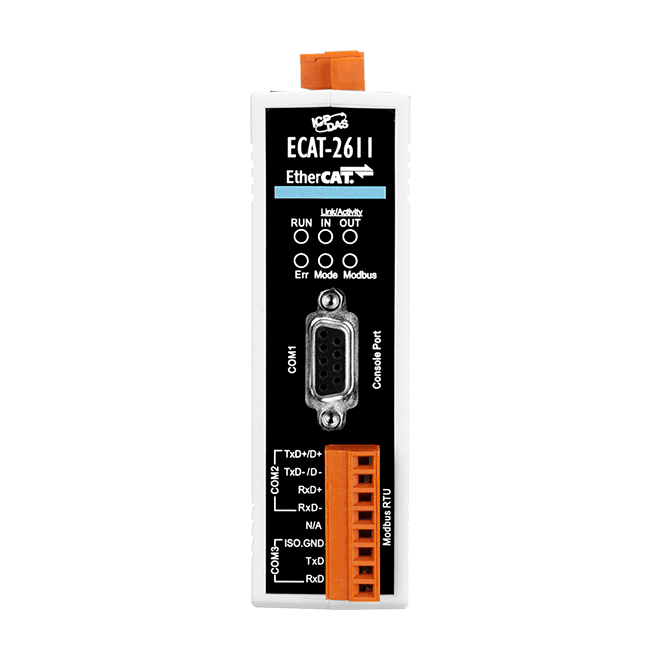

ECAT-2611
EtherCAT SubDevice to Modbus RTU SubDevice Gateway
Features
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 EtherCAT connectors
- Transfer of I/O data between two networks
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports serial port interface
- Supports Modbus RTU (SubDevice) protocol
- Supports RS-232/422/485 Port
- Supports maximum Baud Rate 115200 bps
- Supports Modbus Function code 03, 04, 06 and 16
Introduction

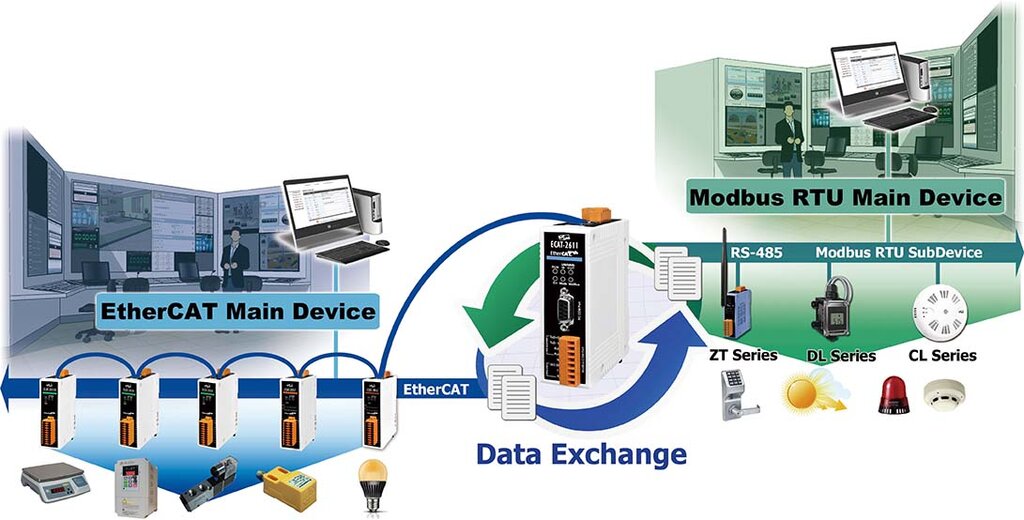

The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a SubDevice on both networks, allowing I/O data to be transferred between the two networks.
The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Main Device and the Modbus RTU Main Device) exchange data easily and faster for more diverse applications.
The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Main Device and the Modbus RTU Main Device) exchange data easily and faster for more diverse applications.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Protocol | Modbus RTU (Salve) |
| EtherCAT | |
|---|---|
| Ports | RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 99 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
