Introduction:

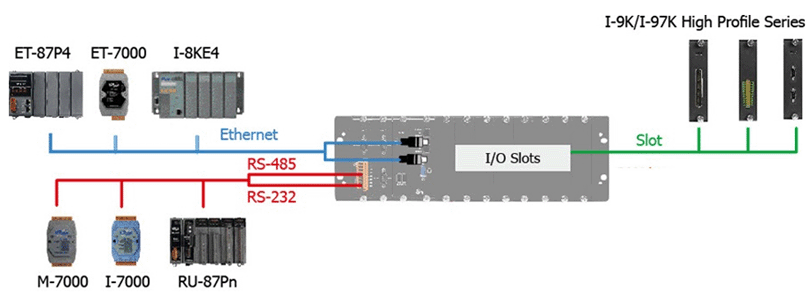

The LX-9x8x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are provided to use our I-9K and I-97K series I/O modules and remote I/O expansions are provided to use our Ethernet I/O modules and RS-485 I/O modules.



Features:

• Intel E3845 CPU (1.91 GHz, quad core)
• Linux kernel 4.4
• Memory Size
  • SDRAM (2 GB DDR3)
  • Flash (32 GB SSD)
  • CF Card (support up to 32 GB)
• VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
• 10/100/1000M Ethernet Ports
• Operating Temperature: -25° to +60°C



Applications:

For more details, please visit:

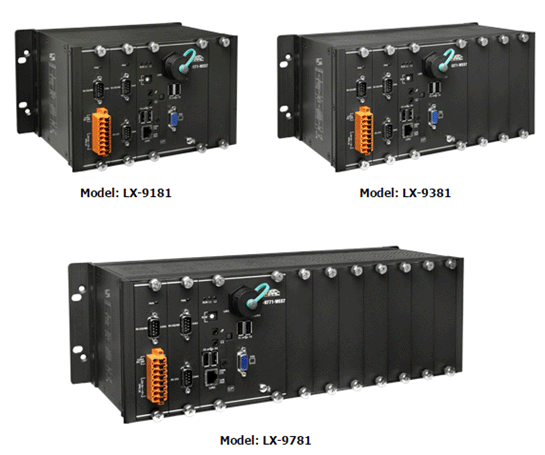

https://www.icpdas.com/en/product/LX-9181
https://www.icpdas.com/en/product/LX-9381
https://www.icpdas.com/en/product/LX-9781
