RIO-9830: Comprehensive Redundant Remote I/O system (Supports Modbus/TCP & 8x I/O Modules)
New Products
2025-08-06

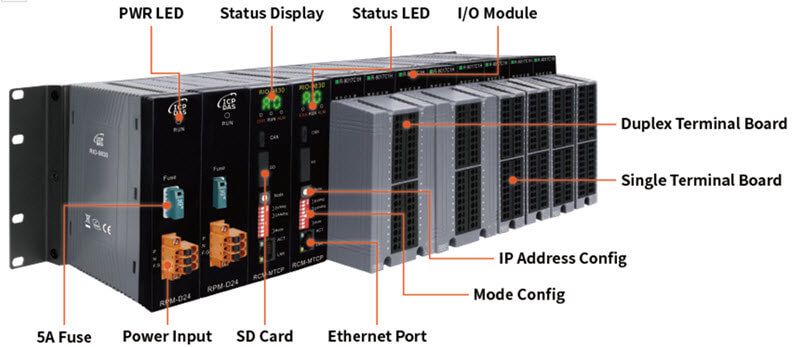

The RIO-9830 is a modular remote redundant I/O system designed to improve system monitoring stability and simplify maintenance. It supports Modbus/TCP communication protocol and can be easily integrated into a widely range of industrial applications.
Key Features of the RIO-9830:
- Hot-swappable Modules: Modules can be replaced without interrupting system operation(redundancy switch-over time < 1ms), significantly improving maintenance efficiency.
- Automatic Parameter Configuration: Simplifies system maintenance by eliminating the need for manual parameter settings.

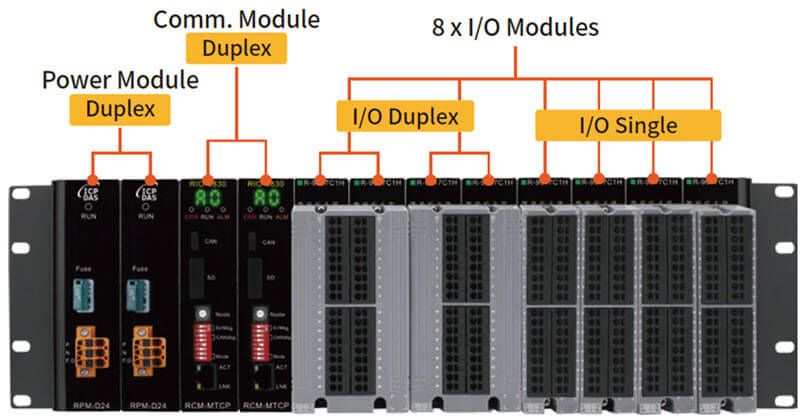

- Redundant Architecture: Power supply, communication and I/O modules all support duplex operation, enhancing system stability and fault tolerance.
- Wide Temperature Range & Fanless Design: Operates reliably in environments ranging from -25°C to +70°C.
- Free Utility Software: Allows users to configure module parameters, monitor I/O values and module status in real-time, and update firmware with ease.
Supported I/O Modules and Terminal Board for RIO-9830:
| Model | Description | Single | Duplex |
|---|---|---|---|
| R-9040 | 32-channel isolated digital input module | RDB-S08 | RDB-D08 |
| R-9041 | 32-channel isolated digital output module | RDB-S05 | RDB-D05 |
| R-9017C1H | 8-channel isolated current input module with HART master support | RDB-S09 | RDB-D09 |
| R-9017C2H | 16-channel current input module with HART master support | RDB-S01 | RDB-D01 |
| R-9015 | 12-channel RTD input module (PT100 / PT1000 / JPT100) | RDB-S03 | RDB-D03 |
| R-9019 | 16-channel thermocouple input module (J, K, T, E, R, S, B, N, C) | RDB-S02 | RDB-D02 |
| R-9028V1 | 8-channel isolated voltage output module | RDB-S09 | RDB-D09 |
| R-9028CH | 8-channel isolated current output module with HART master support | RDB-S09 | RDB-D09 |
| R-9084 | 8-channel isolated high-speed pulse input module | RDB-S09 | RDB-D09 |
