DN-831I-100V/DNM-831I-100V Series
1 Channel Voltage Attenuator and 1 Channel Current Transformer

  ~ NEW ~
Model: DN-831I-100V-(50A)(200A)(500A) Model: DN-831I-100V-(1000A)(2000A)

~ NEW ~ ~ NEW ~
Model: DNM-831I-100V-(50A)(200A)(500A) Model: DNM-831I-100V-(1000A)(2000A)

~ Available soon ~ ~ Available soon ~
Model: DNM-831I-600V-(50A)(200A)(500A) Model: DNM-831I-600V-(1000A)(2000A)

  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • 3000 VDC Channel to Channel Isolation
  • 4 kV ESD Protection
  • 2 kV Surge Protection
  • RoHS Compliance
  • Easily wire connection
  • Operating Temperature: -25 ~ +75 °C

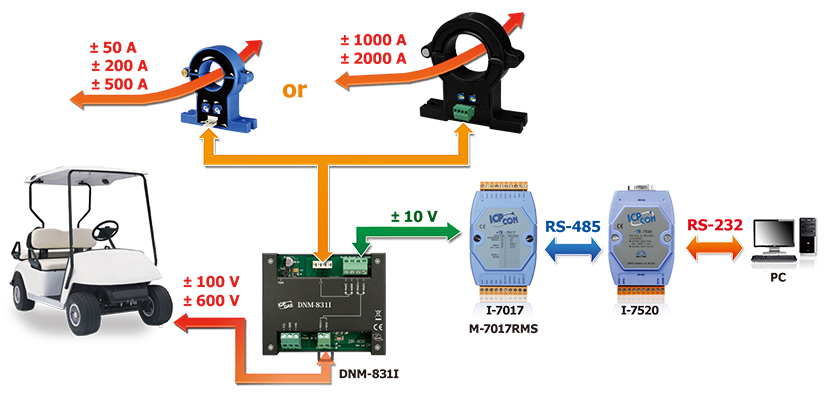

The DN-831I-600V-2000A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±600 V can be attenuated to ±10 V and the maximum current input range is from ±2000 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.


Models DN-831I-100V-50A DN-831I-100V-200A DN-831I-100V-500A DN-831I-100V-1000A DN-831I-100V-2000A
DNM-831I-100V-50A DNM-831I-100V-200A DNM-831I-100V-500A DNM-831I-100V-1000A DNM-831I-100V-2000A
DNM-831I-600V-50A DNM-831I-600V-200A DNM-831I-600V-500A DNM-831I-600V-1000A DNM-831I-600V-2000A
High Current Input
Channels 1
Input Type AC/DC Current
Input Current Range ±50 A ±200 A ±500 A ±1000 A ±2000 A
Output Voltage Range ±10 V
Accuracy 1% of FSR
Isolation voltage 2.5 KV @ 50 (60) HZ/1 min
Frequency bandwidth 0 ~ 50 KHz
CTΦ Φ21 mm Φ40.5 mm
High Voltage Input
Channel 1
Input Type AC/DC Voltage
Input Range ±100 V
±100 V
±600 V
Output Range ±10 V
Accuracy 1% of FSR
Frequency bandwidth 20 Hz ~ 20 kHz
Isolation
Three Way Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±2 kV for power liner
Power Input
Input Range +10 ~ +30 VDC
Power Consumption 1.8 W
Mechanical
Dimensions (W x L x H) 97 mm x 103 mm x 29 mm
Housing -
Metal
Metal
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing

DN-831I-100V-50A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (50A) (RoHS)
DN-831I-100V-200A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (200A) (RoHS)
DN-831I-100V-500A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (500A) (RoHS)
DN-831I-100V-1000A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (1000A) (RoHS)
DN-831I-100V-2000A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (2000A) (RoHS)
DNM-831I-100V-50A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (50A) (Metal) (RoHS)
DNM-831I-100V-200A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (200A) (Metal) (RoHS)
DNM-831I-100V-500A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (500A) (Metal) (RoHS)
DNM-831I-100V-1000A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (1000A) (Metal) (RoHS)
DNM-831I-100V-2000A CR 1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (2000A) (Metal) (RoHS)
DNM-831I-600V-50A CR 1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (50A) (Metal) (RoHS)
DNM-831I-600V-200A CR 1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (200A) (Metal) (RoHS)
DNM-831I-600V-500A CR 1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (500A) (Metal) (RoHS)
DNM-831I-600V-1000A CR 1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (1000A) (Metal) (RoHS)
DNM-831I-600V-2000A CR 1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (2000A) (Metal) (RoHS)

CA-040415 4-pin & 4-pin Cable 1.5 M for Hall Current Sensor 50A/200A/500A (RoHS)
CA-040425 4-pin & 4-pin Cable 2.5 M for Hall Current Sensor 50A/200A/500A (RoHS)
CA-040415-1 4-pin & 4-pin Cable 1.5 M for Hall Current Sensor 1000A/2000A (RoHS)
I-7017-G CR 8-channel Analog Input Module with DCON Protocol (Gray Cover) (RoHS)
I-87017W-G CR 8-channel Analog Input Module (Gray Cover) (RoHS)
M-7017RMS CR 8-channel True RMS Input Module (Gray Cover) (RoHS
I-87017W-RMS CR 8-channel True RMS Input Module (Gray Cover) (RoHS)
