LC Series

LC/SC/DALI Series: Smart Lighting Control

The Smart Lighting Control products by ICP DAS are easy-to-use modules designed for building automation in quick wiring, installation and setup. The LC and SC series support Modbus and DCON protocols; the DALI series is a DALI converter product. According to different demands, users can select to control directly by the digital input or via RS-485 communication. The main applications are the group lighting, dimmer scenes, electric curtains, air-condition fans of temperature & humidity, windows security and other automation controls. Combining with the Hub model and TouchPAD model of ICP DAS can design a smart home/building automation system.

	Easy Installation
	With RJ-11 connector, it's easy to deploy power and data to every LC device.

	Easy Configuration

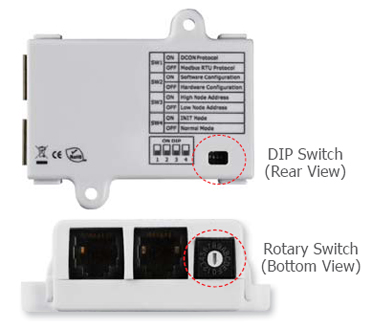

	The configuration can be done by communication via the RS-485 or easily done by DIP and Rotary switches.

	Support Modbus RTU and DCON communication protocols
	Support the industry standard Modbus protocol and the DCON string protocol for easy integrating the third-party devices.

	Control via digital input and RS-485 communication
	Provide two methods to control the Relay output: directly from the digital input, or via the RS-485 communication, or both.

LC Series: Lighting Control Module

LC-101/LC-103 is a easy-to-use lighting module, and control relay output without any software.

LC-221 provides two methods of controlling the brightness of fluorescent lamps via a dimmer, either through DI or controller.

LC-131 is a DI control module equip with 3-channel short circuit digital input and 1-channel relay output.

LC-485 is a 4-ch star topology hub and power supplier, equip with RS-485 short circuit function, shut down faulty channel automatically, and protect the whole communication system.

LC-223 provides the two-stage function for dimmer control.
When no people enter the detection range, the lamp will stay in 10% brightness.
When the people enter the detection range, the lights will transfer to the preset brightness (20% ~ 100%).
When the people leave the detection range, the fi xture will return to 10% brightness after the setting lighting time and keep the brightness until the ambient is bright.
