I-8211W
GPS Receiver Module


~ Available soon ~

Model: I-8211W

  • Time error under 1 millisecond
  • Support 32-channel GPS
  • Capable of SBAS (WAAS, EGNOS, MSAS)
  • Plug and Play in LinPAC (LX-8x31, LP-8x21) series

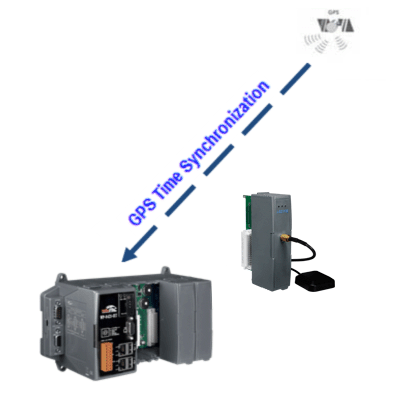

The I-8211W is a GPS receiver that been designed to be automatically and precisely time synchronized for the GPS satellite time transmissions. The I-8211W can be plugged into either slot of the LinPAC, the LinPAC will automatically launch the application and get the GPS time to minimize the RTC drift to 1 millisecond.
PS: LinPAC with NTPD package: LP-8x21, LX-8x31

  • Satellite time correction
  • Precise timekeeping and time measurement

GPS Receiver
Frequency L1 1575.42 MHz, C/A code
Support Channel 32
Position Accuracy Capable of SBAS (WAAS, EGNOS, MSAS)
Max. Altitude <18,000 m
Max. Velocity <515 m/s
Acquisition Time Cold Start (Open Sky)=42 s (typical)
Sensitivity Tracking=Up to -158 dBm
Cold start=Up to -142 dBm
Protocol Support NMEA 0183 version 3.01
LED Indicators
Power 1 LED
Communication 1 LED
Power
Power Consumption 0.75 W (Max.)
Mechanical
Dimensions (W x L x H) 32 mm x 87 mm x 114 mm
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +75°C
Humidity 5 to 95% RH, Non-condensing

I-8211W CR GPS Receiver Module (RoHS) and ANT-115-03 GPS Antenna (Length 5m)
