I-8088W
8-channel PWM Output And 8-Channel isolated DI Module


Model: I-8088W

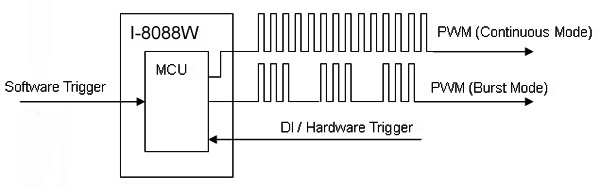

  • Automatic generation of PWM outputs by hardware, without software intervention.
  • 10 Hz ~ 500 kHz (non-continuous) PWM output frequency with 0.1%~99.9% duty cycle
  • Software and hardware trigger mode for PWM output
  • Individual and synchronous PWM output
  • Using software trigger mode, you can set configuration for all PWM channels then trigger them one by one or all of them at the same time.
  • Burst mode PWM operation for standby
  • DI channel can be configured as simple digital input channel or hardware trigger source of the PWM output.

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. I-8088W has 8 PWM output channels and 8 digital inputs. It can be used to develop powerful and cost effective analog control system.

  • Controlling the position/speed of motors
  • Dimming the brightness of lamps
  • Controlling the speed of fans

PWM Output
Channels 8-ch
Scaling Resolution 16-bit(1 ~128 μs for each step)
Frequency Range 10 Hz ~ 500 kHz (non-continuous)
Duty Cycle 0.1% ~ 99.9%
PWM Mode Burst Counting, Continuous mode
Burst Counter 1 ~ 65535
Hardware Trigger Mode Trigger Start & Trigger Stop
Output Type Source
Max Load Current 1 mA
Intra-module Isolation, Field to Logic 3750 Vrms
ESD Protection 4 kV Contact for each channel
Digital Input
Input Channels 8(Sink/Source)
Input Type One Common for All Digital Input
On Voltage Level +5 ~ +30 V
Off Voltage Level <0.8V
Input Impedance 4.7 kΩ, 1/4 W
Intra-module Isolation, Field to Logic 3750 Vrms
ESD Protection 4 kV Contact for each channel
LED Display
1 LED as Power Indicator /16 LED as PWM and Digital Input Indicator
Power
Power Consumption 40 mA @ 5 V, 2 W ±5%
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 5 ~ 95%, Non-condensing
Dimensions
30mm x 102mm x 115mm (W x L x H) Detail

I-8088W-G CR 8-channel PWM Output And 8-Channel isolated DI Module (Gray Cover) (RoHS)

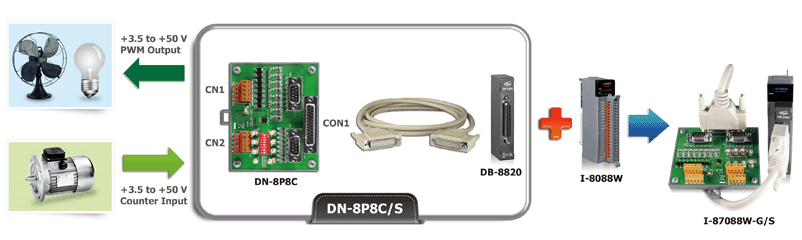

DN-8P8C/S CR 8-channel Digital Output and 8-channel Counter Input Board, including a DB-8820 Daughterboard and a CA-2520D Cable.
