I-8081W
High speed Encoder with Comparison Trigger

~ Available soon ~

Model: I-8081W

Single axis encoder
32-bit encoder counters
Encoder pulse input types: A/B phase, CW/CCW, Pulse/Dir
Position Comparison Trigger

The i-8081W contains a single axis encoder with a position matching circuit. The i-8081W can generate a trigger signal when the motor reaches a specified position. This position is called a break point, and is similar to a switch that is triggered after the motor passes a certain position.

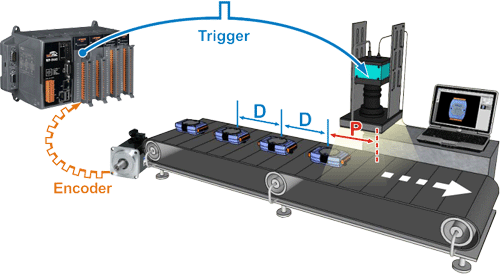

To use the position matching, an initial point (P) should be set, together with a trigger period for the subsequent points (D). The maximum number of (D) point is 255.
The trigger signal is an I/O line that can be used to launch another device. For example, when a motor reaches a certain position, the trigger signal can be used to activate the shutter of a camera to capture an image to be used for defect detection.

All Position matching operations are automatically performed by the hardware circuit, and no software calculation resources are required, when the system is operating. The i-8081W ensures that system design is simpler, and significantly increases system performance.

Data acquisition operations
Optical inspection line-scan systems
Image capture

Encoder with Position Comparison Settings
Encoder Axis	1
Encoder Counter	32-bit
Encoder Mode	Quadrant, CW/CCW, Pulse/Dir
Max Amount of Comparison data	256 or unlimited
Programmable Limited Comparison Trigger	2~256, or unlimited
Delay from Comparison Event to Trigger	< 0.1 uS
Programmable Width of Compare Trigger	10 nS ~ 0.6 mS
Intra-module Isolation, Field-to-Logic	3000 VDC
ESD Protection	4 kV Contact for Each Channel
Digital Input
Input Channels	3 (Sink/Source)
Input Type	Differential Input for all Digital Inputs
On Voltage Level	+5 V ~ +30 V
Off Voltage Level	<0.8V
Input Impedance	4.7 kΩ, 1/4 W
Intra-module Isolation, Field-to-Logic	3000 VDC
ESD Protection	4 kV Contact for Each Channel
Digital Output
Output Channels	2 (Sink/Source)
Output Type	Sink (35 mA) / Source (10 mA)
Load Voltage	5 VDC
Intra-module Isolation, Field to Logic	3000 VDC
LED Display
1 LED as a Power Indicator, 8 LEDs as Encoders and DIO Indicators
Power
Power consumption	Max. 2 W
Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +85 °C
Humidity	5 ~ 95%, Non-condensing
Dimensions
30 mm x 102 mm x 115 mm (W x L x H)

I-8081W-G CR

High speed Encoder with Comparison Trigger (Gray Cover) (RoHS)

|
