DL-301/DL-302/DL-303
CO/CO2/Temperature/Humidity/Dew Point Data Logger

~ NEW ~
Model: DL-301/DL-302/DL-303

  • Simultaneous Display for CO, CO2, Temperature, Humidity and Dew Point
  • Measurement Range
    • CO: 0 ~ 1000 ppm
    • CO2: 0 ~ 9999 ppm
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • 2.8" LCD Touch Screen
  • Able to store up to 450,000 records with date and time stamps
  • Touch-screen and Web-based Configuration Interfaces
  • Free Software Utility, iOS App and Android App Included
  • Able to Display Multilingual Messages
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Alarm Device or IAQ Device Control
  • Desktop, DIN-Rail or Wall Mounting

The DL-300 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records.

Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App.

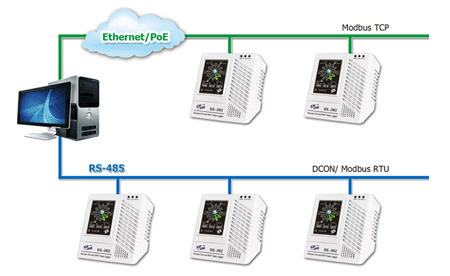

Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

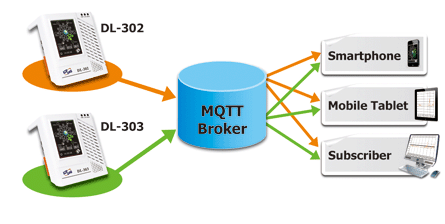

Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level   Supports the MQTT Protocol for IoT Applications


Powerful, Free DL300 Utility Software
The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Access Data at Any Time and Any Place
iAir app is designed for connecting to the DL-300 Data Loggers at any time and any place via your smart phone or tablet. It can retrieve real-time data from the DL-300, and transfer messages to display on the DL-300 Data Loggers. iAir is now available on Google Play and the App Store.

Link
Keyword to Search
QR Code
ICPDAS, CO2CO, iAir
ICPDAS, iAir

Display Messages in Multiple Languages
The display-message-on-screen function supports multiple language character sets based on UTF-8 encoding. Users can remotely display either pre-configured messages or dynamic messages to prompt an operator with a daily schedule or IAQ device control instructions.



  • Transportation of Food or Pharmaceuticals
  • Food and Beverage Industry (HACCP)
  • Blood Stations and Pharmacies
  • Building and Energy Management
  • Warehouse Management
  • Museums, Archives and Galleries

Models DL-301 DL-302 DL-303
CO Measurement
Range 0 to 1000 ppm (Electrochemical) - 0 to 1000 ppm (Electrochemical)
Resolution 1 ppm - 1 ppm
Accuracy ±5% of measured value - ±5% of measured value
Response Time 30 seconds - 30 seconds
Warm-up Time 300 seconds - 300 seconds
CO2 Measurement
Range - 0 to 9999 ppm (NDIR)
Resolution - 1 ppm
Accuracy - ±30 ppm ±3% of measured value
Response Time - 20 seconds
Warm-up Time - 60 seconds
Temperature Measurement
Range -10 to +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Relative Humidity Measurement
Range 0 to 100% RH
Resolution 0.1% RH
Accuracy ±5% RH
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
System
CO Alarm Yes - Yes
CO2 Alarm - Yes Yes
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Relay Output Form A×1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A
Interface RS-485/Ethernet/PoE
Main Machine Interface
LCD 2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
Electrical
Powered from Terminal Block +12 to +48 VDC
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Power Consumption PoE 1.84 W (Max.) 2.65 W (Max.) 2.83 W (Max.)
Non-PoE 1.74 W (Max.) 2.14 W (Max.) 2.24 W (Max.)
Mechanical
Dimensions (L x W x H) 114 mm x 106 mm x 56 mm
Installation Desktop, DIN-Rail or Wall Mounting
Environment
Operating Temperature 0 to +50°C
Storage Temperature -30 to +75°C
Humidity 10 to 90% RH, Non-condensing

DL-301 CR Remote CO/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS)
DL-302 CR Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS)
DL-303 CR Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS)

NS-205 CR Unmanaged 5-port Industrial Ethernet Switch requiring 24 VDC Input (RoHS)
NS-205PSE CR Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink requiring 48 VDC Input (RoHS)
NS-205PSE-24V CR Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink requiring 24 VDC Input (RoHS)
MDR-20-24 CR 24V/1A, 24 W Power Supply with DIN-Rail Mounting (RoHS)
MDR-60-48 CR 48V/1.25A, 60W Single Output Industrial DIN Rail Power Supply (RoHS)
tM-7561 CR USB to Isolated RS-485 Converter (RoHS)
