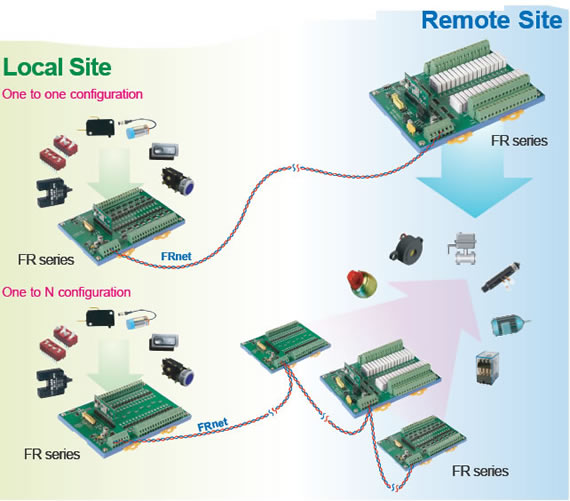

Solutions for long-distance I/O extension of non-CPU I/O systems
Using an input-type FR series module, non-CPU I/O systems can input a digital signal triggered by either a switches, push buttons, or sensor, then transmit the I/O status to one or several output-type FR series modules via a two-wire cable. The output-type FR series modules then output the digital input data to the corresponding digital output channels, such as a buzzer, lamp, motor, light, or actuator, with a response time of less than 3ms. The control distance for standard module can reach 400m; however, some specially desigened models can reach up to 2 Km. It is very simple to use, with even an un trained user able to use it with 5 minutes of training as these is no need to learn any software programming.

Reduced wiring, easy installation, lower labor costs and higher reliability can be easily achieved.

Solutions for Long-distance I/O extension of PAC, PC and PLC
MagicWire modules can extend the digital I/O channles of a PAC, PC or PLC to a remote site via 2-wire FRnet. By using MagicWire modules, there is no need for the user to modify and debug the software. The extension distance can reach 400m. Some specially desogned modules, however, allow it to reach up to 2 Km. The MD series has a 37-pin D-Sub connector and can be used for ICPDAS I/O cards and modules. The MA series has an Fuji 40-pin connector and can be used for Mitsubishi and compatible PLCs. Other types of PLCs or PACs can use an appropriate FR I/O module for long-distance extension of the I/O channels.

Solution for 1 - N configuration
Besides the 1 to 1 connection, MagicWire can also be used to achieve 1 to N connections. The digital output port of a PAC or a PC I/O card or PLC can be extended to several remote sites via a 2-wire FRnet. In this application, all FR modules should use the same node number. This special feature simplifies some I/O control systems.

Networking an existing PLC system is not a nightmare
Networking an existing PLC system is an almost impossible mission. Different machines and equipment use different PLCs and different PLC languages. Very few people really understand the entire system architecture and control programs. However, if a system engineer chooses a Magicwire series product, different PLC systems can be easily networked. The MagicWire modules convert I/O data from parallel to serial, and vice versa, so it is very easy for a PLC programmer to insert a digital I/O program into the original program.

PAC can connect existing PLC systems to either the Internet or an intranet
Using the C language, our PAC, I-7188EF, can be used as a gateway for connecting various PLCs to a PC. The I- 7188EF is a PAC (Micro Programmable Automation Controller) that offers high reliability, PC-compatibility, and compactness at a reasonable price. It has one Ethernet port, one RS-232 port, one RS-485 port, and one FRnet port.
