Ethernet I/O Module with 10-ch Thermocouple Inputs, 6/3-ch DO


  ~ NEW ~
Model: ET-7018Z/PET-7018Z Model: ET-7218Z/PET-7218Z

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • Thermocouple Input: 10 Channels
    • DO: 6/3 Channels

The “Z” version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products. The ET-7018Z/PET-7018Z/ET-7218Z/PET-7218Z is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ET-7018Z PET-7018Z ET-7218Z PET-7218Z
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 1 x RJ-45, 10/100 Base-TX 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE - Yes - Yes
Protocol Modbus TCP, Modbus UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 seconds), Communication (Programmable)
LED Indicators
for System Running Yes
for Ethernet Link/Act Yes
for DI/DO status - Yes
for PoE Power - Yes - Yes
2 Way Isolation
Ethernet 1500 VDC - 1500 VDC -
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for Each Terminal and 8 kV Air for Random Point
EFT (IEC 61000-4-4) +/-4 kV for Power
Power
Reverse Polarity Protection Yes
Powered from Terminal Block 10 ~ 30 VDC 12 ~ 48 VDC 12 ~ 48 VDC 12 ~ 48 VDC
Powered from PoE - Yes, IEEE 802.3af, Class1 - Yes, IEEE 802.3af, Class1
Consumption 2.0 W (Max.) 3.0 W (Max.) 3.1 W (Max.) 3.3 W (Max.)
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm 76 mm x 120 mm x 38 mm
Installation DIN-Rail or Wall mounting
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30~ +80 °C
Humidity 10 ~ 90% RH, non-condensing

Models ET-7018Z PET-7018Z ET-7218Z PET-7218Z
Thermocouple Input
Channels 10 (Differential)
Type +/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710)
Individual Channel Configuration Yes
Resolution 16-bit
Sampling Rate 10 Samples/Second (Total)
Accuracy +/-0.1% of FSR or better
Zero Drift +/-0.5 μV/°C
Span Drift +/-25 ppm/°C
Overvoltage Protection 240 Vrms
Input Impedance >300 kΩ
Common Mode Rejection 150 dB Min.
Normal Mode Rejection 100 dB
Temperature Output Consistency Yes
Stable Temperature Output in the Field Yes
Open Wire Detection Yes
Virtual Channel to Channel Isolation +/-400 VDC
Digital Output
Channels 6 3
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Max. Load Current 700 mA/Channel
Load Voltage 5 VDC ~ 50 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power-on Value Yes, Programmable
Safe Value Yes, Programmable

ET-7018Z/S CR Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1820 Daughter Board (RoHS)
PET-7018Z/S CR PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1820 Daughter Board (RoHS)
ET-7218Z/S CR Ethernet I/O Module with 2-port Ethernet Switch, with 10-ch Thermocouple Inputs, 3-ch DO with DN-1820 Daughter Board (RoHS)
PET-7218Z/S CR PoE Ethernet I/O Module with 2-port Ethernet Switch, with 10-ch Thermocouple Inputs, 3-ch DO with DN-1820 Daughter Board (RoHS)
ET-7018Z/S2 CR Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable (RoHS)
PET-7018Z/S2 CR PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable with PoE (RoHS)
ET-7218Z/S2 CR Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1822 Daughter Board and a 1.8 m Cable (RoHS)
PET-7218Z/S2 CR PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1822 Daughter Board and a 1.8 m Cable with PoE (RoHS)
ET-7018Z/S = DB-1820 Connects to the ET-7018Z Directly
PET-7018Z/S = DB-1820 Connects to the PET-7018Z Directly
ET-7218Z/S = DB-1820 Connects to the ET-7218Z Directly
PET-7218Z/S = DB-1820 Connects to the PET-7218Z Directly
ET-7018Z/S2 = DN-1822 Connects to the ET-7018Z Directly
PET-7018Z/S2 = DN-1822 Connects to the PET-7018Z Directly
ET-7218Z/S2 = DN-1822 Connects to the ET-7218Z Directly
PET-7218Z/S2 = DN-1822 Connects to the PET-7218Z Directly

NS-205 CR Unmanaged 5-port Industrial Ethernet Switch; reguires 24 VDC Input (RoHS)
NS-205PSE CR Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink; reguires 48 VDC Input (RoHS)
NS-205PSE-24V CR Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink; reguires 24 VDC Input (RoHS)
MDR-20-24 CR 24 V/1 A, 24 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F-48 CR 48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
CD-2518D CR 25F-25M 1.8 m Cable with DIN-Rail Mount for the DB-1820 (RoHS)
CD-25015 CR 25F-25M 15 cm Cable with DIN-Rail Mount for theDB-1820 (RoHS)
4PAPP-006-G CR Plastic Rack (RoHS)
CD-25015

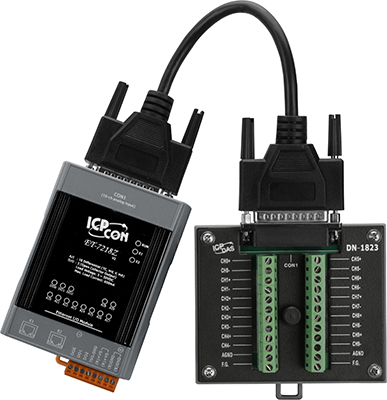

15 cm Cable + DB-1820
4PAPP-006-G
PET-7018Z/S +CD-25015 +4PAPP-006-G
CD-2518D
1.8 m Cable + DB-1820
PET-7018Z/S +CD-2518D
PET-7218Z/S +CD-2518D
