PISO-P8SSR8AC/PISO-P8SSR8DC
Isolated 8 Digital Input and 8 Relay Output Board

~ Will be phased out ~ ~ Phased out ~
Model: PISO-P8SSR8AC Model: PISO-P8SSR8DC
  • PCI Bus
  • 8 SSR output channels
  • 8 optically isolated digital input channels
  • 3750 Vrms photo-isolation protection
  • Selectable DC signal input filter
  • AC signal input with filter
  • Bounceless and silent relay operation
  • Decreased electrical noise during relay switching
  • Supports Plug & Play to obtain I/O resources
  • No more manually setting of I/O address and IRQ

PISO-P8SSR8AC cards provide 8 optically isolated DI channels and 8 solid-state relay output channels. The DI channels provide 3750 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops, and isolate the host computer from damaging voltages.

Relays are used where it is necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled by one signal. Solid-state relays (SSR) control power circuits using a semiconductor device instead of moving parts to perform switching. The advantages of SSR include long-term reliability, no contact bounce, no sparking, silent operation, decreased electrical noise when switching, and faster switching than electromechanical relays.

The PISO-P8SSR8AC can be used in varous applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc. The cards can be installed in a 5 V PCI slot and support true "Plug & Play", with a single DB-37 connector provided for easy wiring.

The PISO-P8SSR8AC supports various OS version, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • DOS Lib and TC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PISO-P8SSR8AC PISO-P8SSR8DC
Digital Input
Isolation Voltage 5000 Vrms (Photo-couple)
Channels 8
Input Voltage Logic 1:AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical)
Relay Output
Channels 8
Relay Type SPST N.O.(Form A)
Contact Rating AC:24 ~ 265 V DC: 3 ~ 30 V
Operate Time 1 ms (typical)
Release Time 0.5 cycle + 1 ms (typical) 1 ms (typical)
Insulation Resistance 1000 MΩ @ 500 VDC
Life Long Life, Maintenance Free
General
Bus Type 5 V PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID No
I/O Connector Female DB37 x 1
Dimensions (L x W x D) 149 mm x 105 mm x 22 mm
Power Consumption 300 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

PISO-P8SSR8AC 8-channel isolated AC type SSR Output with isolated digital input Board.
Includes one CA-4002 D-Sub connector.
PISO-P8SSR8DC 8-channel isolated DC type SSR Output with isolated digital input.
Includes one CA-4002 D-Sub connector.
PISO-P8SSR8AC CR 8-channel isolated AC type SSR Output with isolated digital input Board (RoHS)
Includes one CA-4002 D-Sub connector.
PISO-P8SSR8DC CR 8-channel isolated DC type SSR Output with isolated digital input (RoHS)
Includes one CA-4002 D-Sub connector.

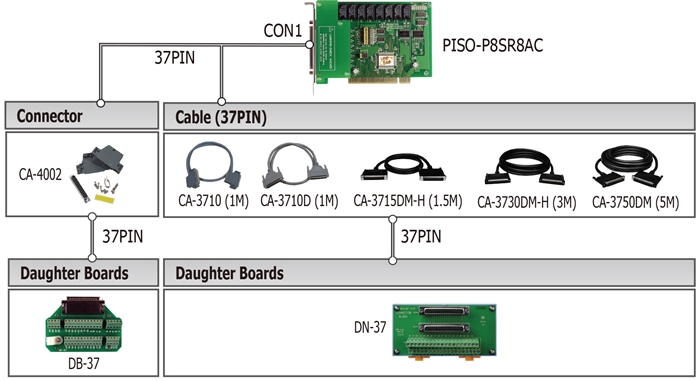

CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
