PEX-P32C32/PISO-P32C32U/PISO-P32C32U-5V
PCI Express/Universal PCI, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board (Current Sinking, NPN type)


  • Support the +5 V PCI bus for PISO-P32C32
  • Support the +3.3/+5 V PCI bus for PISO-P32C32U
  • Support PCI Express x1 for PEX-P32C32
  • 32-channel optically isolated digital input
  • 32-channel optically isolated digital output
  • Built-in DC/DC converter with 3000 VDC isolation
  • Card ID function for PISO-P32C32U(Version 1.1 or above)/PEX-P32C32
  • 3750 Vrms photo-isolation protection
  • Output status readback for PISO-P32C32U (Version 4.0 or above)/PEX-P32C32
Model: PISO-P32C32U Model: PISO-P32C32U-5V

Model: PEX-P32C32

The PEX-P32C32 and PISO-P32C32U series card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new P PEX-P32C32 and PISO-P32C32U series card is designed as a drop-in replacement for the PISO-P32C32, and users can replace the PISO-P32C32 by the PEX-P32C32 and PISO-P32C32U directly without software/driver modification.

The PISO-P32C32U/P32C32-5V universal PCI card supports 3.3 V/5 V PCI bus while the PEX-P32C32 supports PCI Express bus. These cards provide 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel uses a photo-coupler input which allows either internal isolated power supply or external power selected by jumper. Each digital output offers a Darlington transistor. The power supply of the input port may use the external power or the power from the PC side via DC/DC converter. The power supply of the output port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.

The PEX-P32C32 and PISO-P32C32U/P32C32U-5V also adds a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-P32C32 and PIO-P32C32U/P32C32U-5V cards in one computer.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • Factory automation
  • Product test
  • Laboratory automation

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PEX-P32C32 PISO-P32C32U PISO-P32C32U-5V
Digital Input
Isolation Voltage 3750 Vrms (Using external power)
Channels 32
Compatibility Sink or Source, Photo coupler isolated channel with common power or ground
Input Voltage Logic 0: 0 ~ 1 V
Logic 1: 9 ~ 24 V
(Logic 1: Min. 7 V ; Max. 30 V)
Logic 0: 0 ~ 1 V
Logic 1: 5 ~ 12 V
(Logic 1: Min. 3.5 V; Max. 16 V)
Input Impedance 3 KΩ, 0.5 W
Response Speed 4 kHz (Typical)
Digital Output
Isolation Voltage 3750 Vrms
Channels 32
Compatibility Sink, Open Collector
Output Capability 100 mA/+30 V for each channel @ 100% duty
Response Speed 4 kHz (Typical)
General
Bus Type PCI Express x 1 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID Yes (4-bit) Yes(4-bit) for Version 1.1 or above
I/O Connector Female DB37 x 1
40-pin box header x 1
Dimensions (L x W x D) 180 mm x 105 mm x 22 mm
Power Consumption 550 mA @ +3.3 V
350 mA @ +12 V
600 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

PEX-P32C32 CR PCI Express, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board.
(Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.
PISO-P32C32U CR Universal PCI, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board.
(Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.
PISO-P32C32U-5V CR Universal PCI, 32-channel Optically Isolated Digital Input (Logic High: 5~12 V) and 32-channel Optically Isolated Digital Open-collector output Board. (Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.

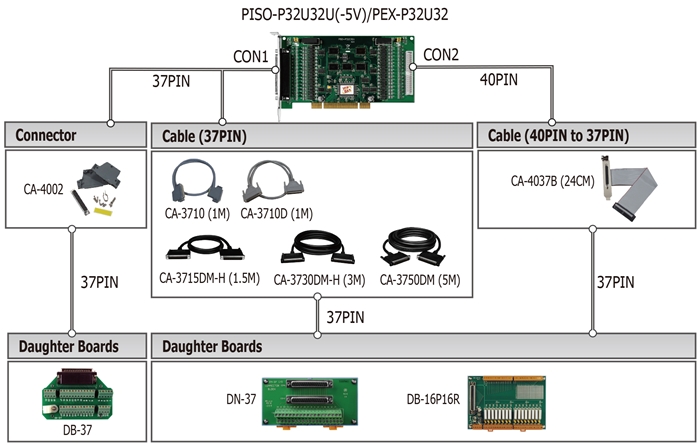

CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
CA-4037B 40-pin flat & D-sub 37-pin Female cable 24 cm.
DB-16P16R 16-channel input terminal and 16-channel relay output board
Include : CA-3710D Male- Male D-sub Cable 1.0 M
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
