PISO-1730U
Universal PCI, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board(Current Sinking, NPN type)

Model: PISO-1730U


Support the +3.3/+5 V PCI bus 32-channel optically isolated digital input 32-channel optically isolated digital output Card ID function Built-in DC/DC converter with 3000 VDC isolation 3750 Vrms photo-isolation protection Four isolated bank

The PISO-1730U has 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel uses a photo-coupler input. Each digital output offers a Darlington transistor. The power supply of the output port and input port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.

The PISO-1730U provides a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-1730U cards in one computer.

The PISO-1730U software is fully compatible with the PISO-P32C32U software. Therefore, the new PISO-1730U card is totally compatible with PISO-P32C32U series card and requires no software modification. The PISO-1730U support various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Factory automation
Product test
Laboratory automation

DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Digital Input
Isolation Voltage	3750 Vrms (Using external power)
Channels	32
Compatibility	Sink or Source, Photo coupler isolated channel with common power or ground
Input Voltage	Logic 0: 0 ~ 1 V Logic 1: 9 ~ 24 V (Logic 1: Min. 7 V ; Max. 30 V)
Input Impedance	3 KΩ, 0.5 W
Response Speed	4 kHz (Typical)
Digital Output
Isolation Voltage	3750 Vrms
Channels	32
Compatibility	Sink, Open Collector
Output Capability	100 mA/+30 V for each channel @ 100% duty
Response Speed	4 kHz (Typical)
General
Bus Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit
Card ID	Yes(4-bit)
I/O Connector	Female DB37 x 1 40-pin box header x 1
Dimensions (L x W x D)	180 mm x 105 mm x 22 mm
Power Consumption	600 mA @ +5 V
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 70 °C
Humidity	5 ~ 85% RH, non-condensing

PISO-1730U CR

Universal PCI, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board.
(Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.

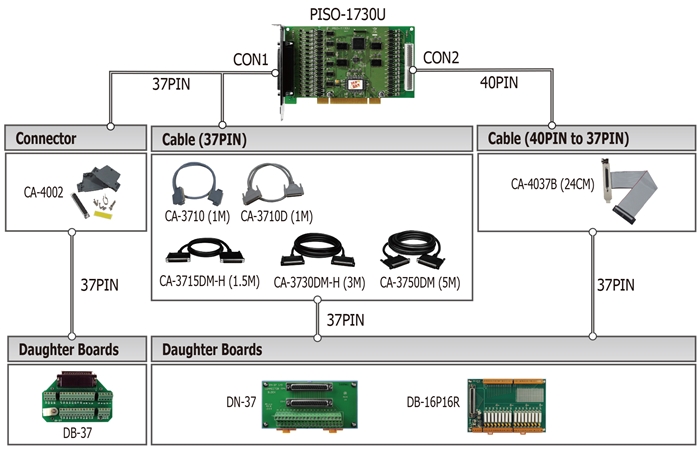

CA-3710	DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D	DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H	DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H	DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM	DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H	DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002	37-pin Male D-sub connector with plastic cover.
CA-4037B	40-pin flat & D-sub 37-pin Female cable 24 cm.
DB-16P16R	16-channel input terminal and 16-channel relay output board Include : CA-3710D Male- Male D-sub Cable 1.0 M
DB-37	Directly connect signal to D-sub 37-pin connector.
DN-37	DIN Rail Mounting 37-pin Connector
