home > product> solutions > pc based i/o board > Introduction > PIO-821H/PIO-821L/PIO-821HU/PIO-821LU

PIO-821H/PIO-821L/PIO-821HU/PIO-821LU
PCI Bus/Universal PCI, 12-bit 45 kS/s 16-ch A/D, 12-bit 1-ch D/A Multi-function DAQ Board

~ Will be phased out ~
  • Supports the +5 V PCI Bus for PIO-821L/H
  • Supports the +3.3/+5 V PCI bus for PIO-821LU/HU
  • The maximum sampling rate of the 12-bit A/D converter is about 45K samples/sec
  • 16 single-ended or 8 differential analog input channels
  • Software selectable input ranges
  • A/D trigger mode: software trigger, pacer trigger, external trigger
  • Programmable high gain: 1, 10, 100, 1000 (PIO-821H/HU)
  • Programmable low gain: 1,2,4,8 (PIO-821L/LU)
  • Input range: ±5V,±0.5V, ±0.05V,±0.005V(PIO-821H/HU)
  • Input range: ±5V,±2.5V,±1.25V,±0.625V (PIO-821L/LU)
  • 1-channel 12-bit D/A voltage output
  • 16-channel 5V/TLL digital input and 16-channel 5V/TTL digital output
  • Supports Card ID (SMD Switch) for PIO-821LU/HU
  • Digital input port can be set to pull-high or pull-low for PIO-821LU/HU
  • Interrupt handling
Model: PIO-821H/PIO-821L

Model: PIO-821HU/PIO-821LU


The PIO-821LU/HU card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PIO-821LU/HU card is designed as a drop-in replacement for the PIO-821L/H, and users can replace the PIO-821L/H by the PIO-821LU/HU directly without software/driver modification.

The PIO-821 series cards are a high performance multifunction board for PC/AT compatible computers. The PIO-821LU/HU universal PCI card supports 3.3 V/5 V PCI bus while the PIO-821L/H supports 5 V PCI bus. They feature a 12-bit ADC and the maximum sampling rate of the A/D converter reaches up to about 45K samples/sec.,16 single-ended or 8 differential analog input channels, 12-bit DAC voltage output and 16 TTL-compatible digital input and digital output channels. The PIO-821L/LU provides for low gain (1, 2, 4, 8); and the PIO-821H/HU supports high gain (1, 10, 100, 1000).

The PIO-821LU/HU also adds a Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-821LU/HU cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

  • DOS Lib and TC sample program (source codes included).
  • DLL and OCX SDK for Windows 98/NT/2000
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PIO-821LU PIO-821HU PIO-821L PIO-821H
Analog Input
Channels 16 single-ended/8 differential
A/D Converter 12-bit, 8 μs Conversion time
Sampling Rate 45 kS/s. max.
FIFO Size N/A
Over voltage Protection Continuous +/-35 Vp-p
Input Impedance 10 MΩ/6 pF
Trigger Modes Software, Internal programmable pacer
Data Transfer Polling, Interrupt
Accuracy 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift +/- 4 ppm/°C of FSR
Analog Output
Channels 1
Resolution 12-bit
Accuracy 0.01% of FSR ± 1/2 LSB @ 25 °C, ± 10 V
Output Range Unipolar:0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref
Output Driving +/- 5 mA
Slew Rate 0.3 V/μs
Output Impedance 0.1 Ω max.
Operating Mode Software
Dgital Input
Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.2 MHz (Typical)
Digital Output
Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 1.2 MHz (Typical)
Timer/Counter
Channels 3(Internal pacer x 1/Independent x 2)
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 2 MHz
General
Bus Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz 5 V PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID Yes (4-bit) No
I/O Connector Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 159 mm x 97 mm x 22 mm 183 mm x 105 mm x 22 mm
Power Consumption 960 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
Analog Input Range
Model
PIO-821L/LU (Low-Gain)
Gain
1
2
4
8
Bipolar
+/- 5
+/- 2.5
+/- 1.25
+/- 0.625
Sampling Rate Max.
45 kS/s
Model
PIO-821H/HU (High-Gain)
Gain
1
10
100
1000
Bipolar
+/- 5
+/- 0.5
+/- 0.05
+/- 0.005
Sampling Rate Max.
45 kS/s
10 kS/s
1 kS/s

PIO-821H CR PCI bus, 45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
PIO-821L CR PCI bus, 45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
PIO-821H/S CR PIO-821H + Daughter Board DB-8225. (RoHS)
PIO-821HU CR Universal PCI, 45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
Includes one CA-4002 D-Sub connector.
PIO-821LU CR Universal PCI, 45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
Includes one CA-4002 D-Sub connector.

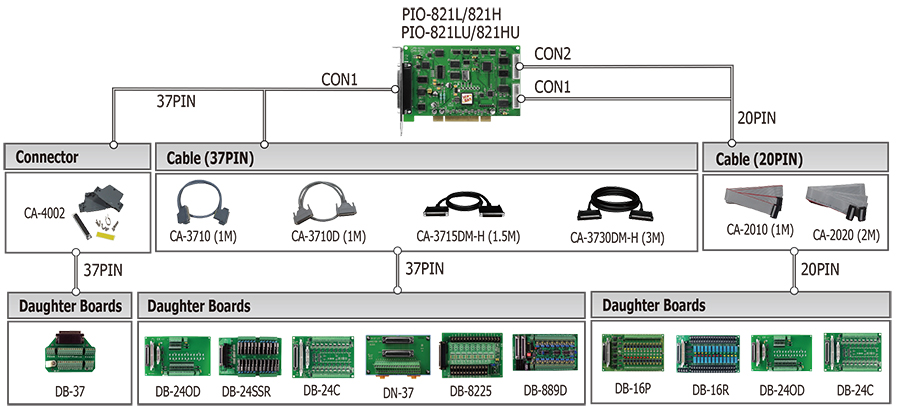

CA-2010 20-pin flat cable,1 M
CA-2020 20-pin flat cable 2 M.
CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
DB-8225 Screw Terminal Board For Analog I/O
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
DB-889D 16-channel Analog Input Multiplexer Board
DB-16P 16-channel Isolated Digital Input Daughter Board
DB-16R 16-channel Relay Output Daughter Board
DB-24C 24-channel Open Collector Output Daughter Board
DB-24OD 24-channel Open-Drain Output Board
DB-24SSR 24-channel SSR Output Board
DN-20/DN-20-381 20-pin Din-Rail mounting I/O connector board
125Ω, 0.1% DIP Resistors 125 Ω External Resistor for use with Current Input
