PCI-P8R8U/PCI-P16R16U
8/16-channel Isolated Digital Input and 8/16-channel Relay Output


Model: PCI-P8R8U Model: PCI-P16R16U

  • Support the +3.3/+5 V PCI bus
  • 8/16 Relay output channels
  • 8/16 Optical isolated (5000 Vrms) digital input channels
  • Selectable DC signal input filter
  • AC Signal input with filter
  • Card ID function

The PCI-P8R8U/P16R16U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-P8R8/P16R16. Users can replace the PCI-P8R8/P16R16 by the PCI-P8R8U/P16R16U directly without software/driver modification.

The PCI-P8R8U/P16R16U universal PCI card supports 3.3 V/5 V PCI bus while the PCI-P8R8 supports 5 V PCI bus. These cards contain 8/16 photo-coupler Digital Input channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 8/16 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PCI-P8R8U/P16R16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 10/8/7/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PCI-P8R8 PCI-P8R8U PCI-P16R16U
Digital Input
Isolation Voltage 5000 Vrms (Photo-couple)
Channels 8 16
Input Voltage Logic 1:AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Relay Output
Channels 8 16
Relay Type 4 SPDT ,4 SPST 8 SPDT ,8 SPST
Contact Rating AC:120 V@0.5 A
DC: 24 V@1 A
Operate Time 5 ms (typical)
Release Time 10 ms (typical)
Insulation Resistance 1000 MΩ @ 500 VDC
Life Mechanical: 5,000,000 ops.
Electrical: 100,000 ops.
General
Bus Type 5 V PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID No Yes(4-bit) Yes(4-bit)

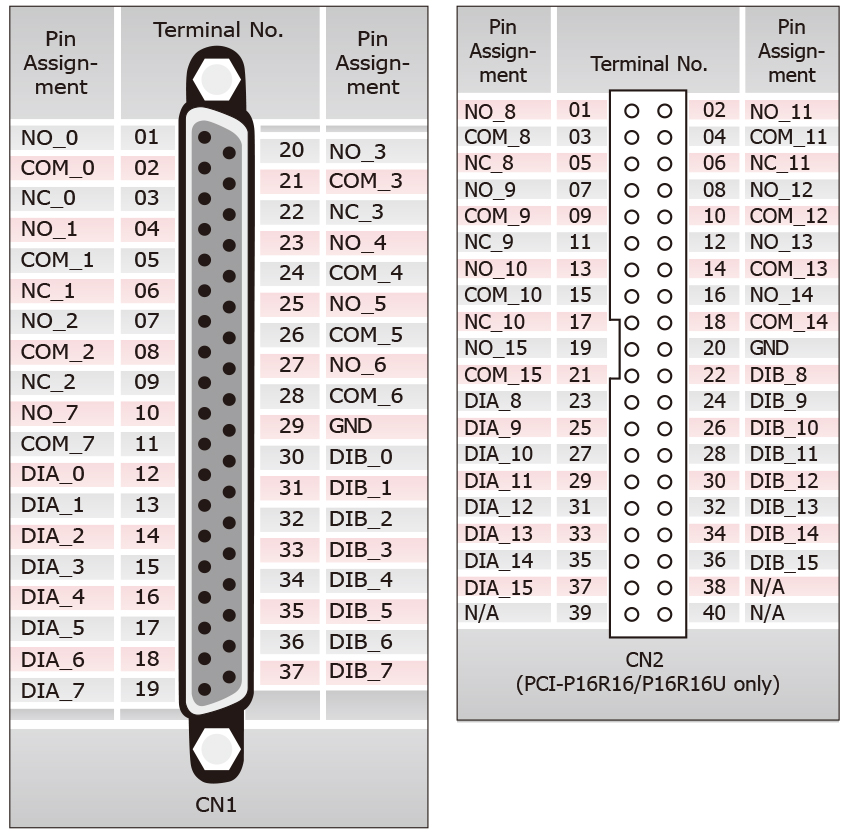

I/O Connector Female DB37 x 1 Female DB37 x 1
40-pin box header x 1
Dimensions (L x W x D) 183 mm x 105 mm x 22 mm
Power Consumption 500 mA @ +5 V 800 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

PCI-P8R8U CR Universal PCI, 8-channel isolated digital input and 8-channel Relay output (RoHS)
Includes one CA-4002 D-Sub connector.
PCI-P16R16U CR Universal PCI, 16-channel isolated digital input and 16-channel Relay output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors.
PCI-P8R8 CR PCI bus, 8-channel isolated digital input and 8-channel Relay output (RoHS)
Includes one CA-4002 D-Sub connector.

CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
CA-4037W 40-pin flat & D-sub 37-pin Female cable 24 cm.
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
