PCI-1800 Series
Universal PCI, 12-bit 330k/44k S/s A/D and 12-bit D/A Multi-function Board


  • PCI bus, 5 V, 32-bit, 33 MHz for PCI-1800/1802L/H
  • 12-bit 330 kHz A/D converter
  • AI channels:
    16 single-ended/8 differential inputs, 1 K word FIFO buffer for PCI-1800 series
    32 single-ended/16 differential inputs, 8 K word FIFO buffer for PCI-1802 series
  • Total sampling rate:
    up to 330 K samples/s for low gain model
    up to 44 K samples/s for high gain model
  • Programmable gain:
    Low gain: 0.5, 1, 2, 4, 8 for PCI-1800/1802L/LU
    High gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 for PCI-1800/1802H/HU
  • Three different external trigger: post-trigger, pre-trigger, middle trigger
  • Internal/external A/D trigger
  • 16 digital input/16 digital output channels
  • Two 12-bit DA channels, 2 MHz throughput per channel (max.)
  • High speed data transfer rate up to 2.7 Mword/sec.
  • DB-889D accessory for expanding channels of PCI-1800 series
  • DB-889D and DB-1825 accessories for expanding channels of PCI-1802 series
  • Half size board
    [PCI-1800/1802LU/HU only]
  • Universal PCI interface supports both 5 V and 3.3 V PCI bus.
  • Pull-high/ pull-low resistors for DI channels.
Model: PCI-1800LU/HU
Model: PCI-1802LU/HU


The PCI-1800/1802 (L/H) is a family of high performance data acquisition board with 5V PCI bus. The PCI-1800/1802LU/HU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus. All the members in the PCI-1800 family have the same architecture; they feature a continuous A/D acquisition function of up to 330 kHz for low gain (44 kHz for high gain) under DOS and offer two 12-bit D/A output channels, 16 digital input channels and 16 digital output channels. The PCI-1800 series provides 16 single-ended or 8 differential inputs while the PCI-1802 series provides 32 single-ended or 16 differential inputs. In addition, an amazing A/D channel scan function called “MagicScan” is provided for users to easily implement multi-channel analog data acquisition applications. The specific MagicScan controller takes out most works of getting A/D value such as selecting channel, setting gain, settling time, triggering ADC and getting data. Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 330 kS/s totally. The PCI-1800 series is suitable for high end applications.

The PCI-1802 series cards are equipped with 8 K samples hardware FIFO to reduce data overflow issues under multi-tasking environment like Windows and Linux.

The PCI-1800/1802LU/HU has a Card ID switch with which users can recognize the board by the ID via software when using two or more PCI-1800/1802LU/HU cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The PCI-1800/1802 series cards support Linux, DOS, Windows 98/NT/2000, and 32/64-bit Windows XP/2003/2008/Vista/7. The I/O card SDK provides DLL, Active X control and sample programs with source codes of various languages such as Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW . Users can refer to the demos for their development tool to implement application quickly and easily.

ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).
ICP DAS PC-Based Multifunction Board Selection Guide
Model Name
D/A Channel
A/D Channel
A/D Sampling Rate
FIFO Size
Software Trigger (Polling)
Pacer Scan (Magicscan)
Post-trigger Pre-trigger Middle-trigger
Interrupt function
PCI-1202LU
12-bit, 2-ch
12-bit, 32 S.E/16 Diff
110 kS./s
1 k
V
V
V
-
PCI-1202HU
12-bit, 2-ch
12-bit, 32 S.E/16 Diff
44 kS./s
1 k
V
V
V
-
PCI-1602U
12-bit, 2-ch
16-bit, 32 S.E/16 Diff
100 kS./s
8 k
V
V
V
-
PCI-1602FU
12-bit, 2-ch
16-bit, 32 S.E/16 Diff
200 kS./s
8 k
V
V
V
-
PCI-1800LU
12-bit, 2-ch
12-bit, 16 S.E/8 Diff
330 kS./s
1 k
V
V
V
-
PCI-1800HU
12-bit, 2-ch
12-bit, 16 S.E/8 Diff
44 kS./s
1 k
V
V
V
-
PCI-1802LU
12-bit, 2-ch
12-bit, 32 S.E/16 Diff
330 kS./s
8 k
V
V
V
-
PCI-1802HU
12-bit, 2-ch
12-bit, 32 S.E/16 Diff
44 kS./s
8 k
V
V
V
-
PCI-822LU
16-bit, 2-ch
12-bit, 32 S.E/16 Diff
250 kS./s
8 k
V
V
V
V
Cost-effective Programmable DIO
PCI-826LU
16-bit, 2-ch
16-bit, 32 S.E/16 Diff
250 kS./s
8 k
V
V
V
V
Cost-effective Programmable DIO

  • High speed data acquisition system
  • Process monitor and control.
  • Vibration analysis.

  • DOS Lib and TC/BC/MSC sample program (source codes included)
  • DLL and OCX SDK for Windows 98/NT/2000.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PCI-1802H
PCI-1802L		 PCI-1802HU
PCI-1802LU		 PCI-1800H
PCI-1800L		 PCI-1800HU
PCI-1800LU
Analog Input
Channels 32 single-ended/16 differential 16 single-ended/8 differential
AD Conversion 12-bit, 3 μs conversion time
Sampling Rate 330 kS/s. max.
FIFO Size 8192 samples 1024 samples
Over voltage Protection Continuous +/-35 Vp-p
Input Impedance 10 MΩ/6 pF
Trigger Modes Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer Polling
Accuracy 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift +/- 2 ppm/°C of FSR
Analog Output
Channels 2
Resolution 12-bit
Accuracy 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V
Output Range Bipolar:+/5 V, +/-10 V
Output Driving +/- 5 mA
Slew Rate 8.33 V/μs
Output Impedance 0.1 Ω max.
Operating Mode Software
Dgital Input
Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 2.0 MHz (Typical)
Digital Output
Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 2.0 MHz (Typical)
Timer/Counter
Channels 3(Independent x 1/Internal pacer x 1/External pacer x 1)
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 8 MHz
General
Bus Type 5 V PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI,
32-bit, 33 MHz		 5 V PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI,
32-bit, 33 MHz
Data Bus 16-bit
Card ID No Yes(4-bit) No Yes(4-bit)
I/O Connector Female DB37 x 1
Male 20-bit ribbon x 2
Dimensions (L x W x D) 200 mm x 105 mm
Power Consumption 300 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
Analog Input Range
Model
PCI-1800L/PCI-1802L/PCI-1800LU/PCI-1802LU (Low-Gain)
Gain
0.5
1
2
4
8
Bipolar
+/- 10
+/- 5
+/- 2.5
+/- 1.25
+/- 0.625
Unipolar
-
0 ~ 10
0 ~ 5
0 ~ 2.5
0 ~ 1.25
Sampling Rate Max.
330 kS/s
Model
PCI-1800H/PCI-1802H/PCI-1800HU/PCI-1802HU (High-Gain)
Gain
0.5
1
5
10
50
100
500
1000
Bipolar
+/- 10
+/- 5
+/- 1
+/- 0.5
+/- 0.1
+/- 0.05
+/- 0.01
+/- 0.005
Unipolar
0 ~ 10
-
0 ~1
-
0 ~ 0.1
-
0 ~ 0.01
Sampling Rate Max.
44 kS/s
10 kS/s
1 kS/s

PCI-1800HU CR Universal PCI, 16-ch, 12-bit, 44 kS/s High Gain Multi-function DAQ Board (1 K word FIFO) (RoHs)
Includes one CA-4002 D-Sub connector.
PCI-1800LU CR Universal PCI, 16-ch, 12-bit, 330 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO) (RoHs)
Includes one CA-4002 D-Sub connector.
PCI-1802LU CR Universal PCI, 32-ch, 12-bit, 330 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO) (RoHs)
Includes one CA-4002 D-Sub connector.
PCI-1802HU CR Universal PCI, 2-ch, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (8 K word FIFO) (RoHs)
Includes one CA-4002 D-Sub connector.
OEM Version
PCI-1800HU/S PCI-1800HU CR with DB-8225 daughter board, Cable
Includes one CA-3710 D-Sub cable.
PCI-1800LU/S PCI-1800LU CR with DB-8225 daughter board, Cable
Includes one CA-3710 D-Sub cable.
PCI-1802HU/S PCI-1802HU CR with DB-1825 daughter board, Cable
Includes one CA-3710 D-Sub cable.
PCI-1802LU/S PCI-1802LU CR with DB-1825 daughter board, Cable
Includes one CA-3710 D-Sub cable.

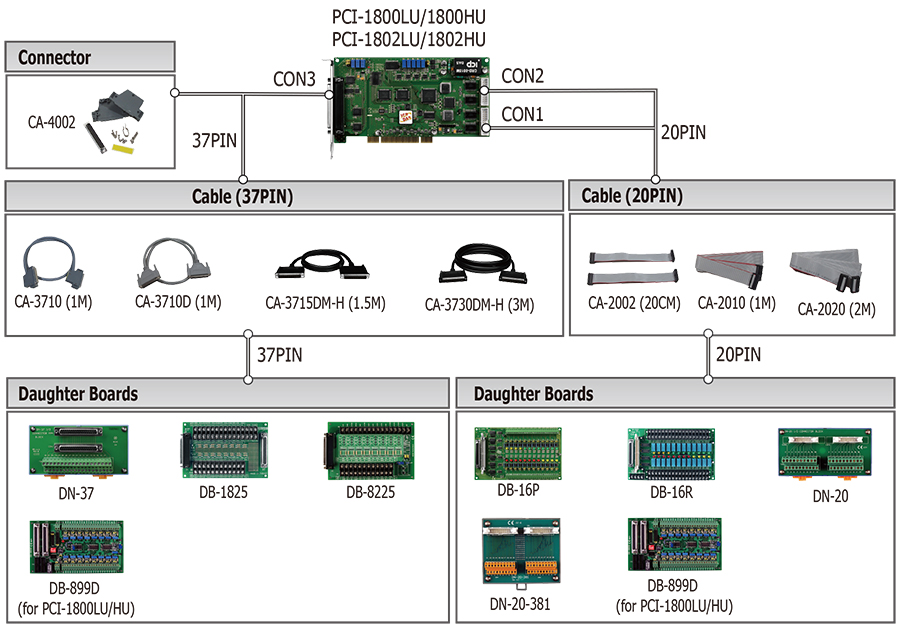

CA-2002 20-pin flat cable, 20 cm x 2
CA-2010 20-pin flat cable,1 M
CA-2020 20-pin flat cable 2 M.
CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
DB-1825 Analog Input Screw terminal Board
DB-8225 Screw terminal board , filter circuitry can be added for PCI-1800H, 1800L, 1800HU, 1800LU
DB-889D 16-channel Analog Multiplexer Board (for PCI-1800LU/HU)
DB-16P Isolated Digital Input Daughter Board
DB-16R Relay Output Daughter Board
DN-37 DIN Rail Mounting 37-pin Connector
DN-20/DN-20-381 20-pin Din-Rail mounting I/O connector board
125Ω, 0.1% DIP Resistors 125 Ω External Resistor for use with Current Input
