home > product> solutions > pac > ViewPAC > VP-23W1/VP-25W1/VP-4131

VP-23W1/VP-25W1/VP-4131
Standard ViewPAC (Window CE.NET 5.0 Inside)

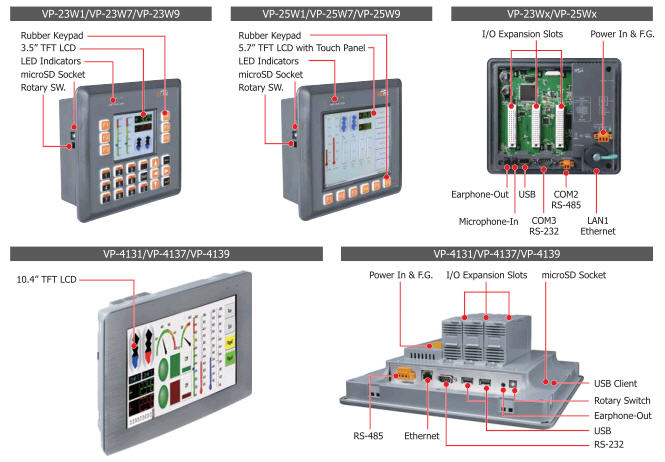

Model: VP-23W1 Model: VP-25W1 Model: VP-4131

ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5"/5.7"/10.4" TFT LCD and a rubber keypad.

Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC Ketc.

Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

  • Windows CE.NET 5.0 Inside
  • Easy Remote Maintenance Via Ethernet
    • FTP Server
    • VCEP software
  • Built-in OPC Server: NAPOPC_CE5
    • An OPC Server for SCADA Software
    • Integrates Local/Remote I/O Modules Via RS-232/485 or Ethernet
    • Provides Library for eVC, C# or VB.NET
    • Supports Modbus and DCON Protocols
  • Development Software
    • Visual Studio.NET 2005/2008 and eVC
  • SDK/Demo Programs for C#, VB.NET & eVC

  • PXA 270 CPU (32-bit & 520 MHz)
  • IP65 Compliant Front Panel
  • 3.5"/5.7"/10.4" TFT LCD (5.7/10.4 LCDs are with Touch Panel)
  • Rubber Keypad with 24/6 Keys
  • Audio with MIC-In and Line-Out
  • 64-bit Hardware Serial Number for Software Protection
  • 3 Slots for High Profile I/O Modules
  • Rich I/O Expansion Ability
    • Ethernet
    • RS-232/422/485
    • FRnet
    • CAN bus
  • Dual Battery Backup SRAM (512 KB)
  • One Ethernet Port
  • 2 Serial Ports (RS-232, RS-485)
  • Operating Temperature: -20 ~ +70 °C

Environment monitoring, factory automation, building management system, industrial machine control, etc.


Models VP-23W1 VP-25W1 VP-4131
System Software
OS Windows CE.NET 5.0
.Net Compact Framework 3.5
Embedded Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided Dll for eVC, Dll for Visual Studio.Net 2005/2008
CPU Module
CPU PXA270 or compatible (32-bit and 520 MHz)
SDRAM 128 MB
Dual Battery Backup SRAM 512 KB (for 5 years data retain)
Flash 96 MB 128 MB
EEPROM 16 KB
Expansion Flash Memory microSD socket with a 4 GB microSD card (support up to 32 GB)
RTC (Real Time Clock) Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
64-bit Hardware Serial Number Yes
Dual Watchdog Timer Yes
Rotary Switch Yes (0 ~ 9)
Communication Interface
Ethernet Port RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 1.1 (host) 1 2
USB 1.1 (client) - 1
COM 0 Internal communication with I-87K modules in slots
COM 2 RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated.
COM 3 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated
MMI (Man Machine Interface)
LCD 3.5" TFT (Resolution 320 x 240) 5.7" TFT (Resolution 640 x 480) 10.4" TFT (Resolution 800 x 600)
Touch Panel - Yes
Rubber Keypad 24 Keys 6 Keys -
Audio Microphone-In and Earphone-Out Earphone-Out
LED Indicators 3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) 2 LEDs (PWR, RUN)
I/O Expansion Slots
Slot Number 3 (For High Profile I-8K and I-87K Modules Only)
Mechanical
Dimensions (W x L x H) 182 mm x 158 mm x 125 mm 293 mm x 231 mm x 129 mm
Weight 1.5 kg 1.6 kg 3.6 kg
Ingress Protection Front panel: IP65
Environmental
Operating Temperature -20 °C ~ +70 °C
Storage Temperature -30 °C ~ +80 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
Power
Input Range +10 VDC ~ +30 VDC
Isolation 1 kV
Capacity 2.5 A, 5 V supply to I/O expansion slots
Consumption 7.2 W (0.3 A @ 24 VDC) 8.5 W

VP-23W1-EN CR Standard ViewPAC with 3.5 LCD (English Version of OS) (RoHS)
VP-25W1-EN CR Standard ViewPAC with 5.7 LCD (English Version of OS) (RoHS)
VP-4131-EN CR Standard ViewPAC with 10.4” LCD and 3 I/O slots (Multilanguage Version of OS) (RoHS)

VP-23W1-TC CR Standard ViewPAC with 3.5 LCD (Traditional Chinese Version of OS) (RoHS)
VP-25W1-TC CR Standard ViewPAC with 5.7 LCD (Traditional Chinese Version of OS) (RoHS)
VP-4131-TC CR Standard ViewPAC with 10.4” LCD and 3 I/O slots (Traditional Chinese of OS) (RoHS)

VP-23W1-SC CR Standard ViewPAC with 3.5 LCD (Simplified Chinese Version of OS) (RoHS)
VP-25W1-SC CR Standard ViewPAC with 5.7 LCD (Simplified Chinese Version of OS) (RoHS)
VP-4131-SC CR Standard ViewPAC with 10.4” LCD and 3 I/O slots (Simplified Chinese of OS) (RoHS)

DP-660 24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting
MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting
MDR-60-24 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting
USB-2560 CR 4-Port Industrial USB 2.0 Hub (RoHS)
NS-208 CR 8-Port Unmanaged Industrial 10/100 Base-TX Ethernet Switch (RoHS)
