VP-1231-CE7/VP-4231-CE7/VP-6231-CE7
Standard ViewPAC (Window CE.NET 7.0 Inside) |
|
| |
| ~ NEW ~ |
~ NEW ~ |
~ NEW ~ |
 |
 |
|
| Model: VP-1231-CE7 |
Model: VP-4231-CE7 |
Model: VP-6231-CE7 |
|
|
| |
 |
ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a Cortex-A8 CPU (1GHz) running Windows CE.NET 7.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7"/10.4"/15" TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 7.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 7.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC Ketc.
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC. |
| |
 |

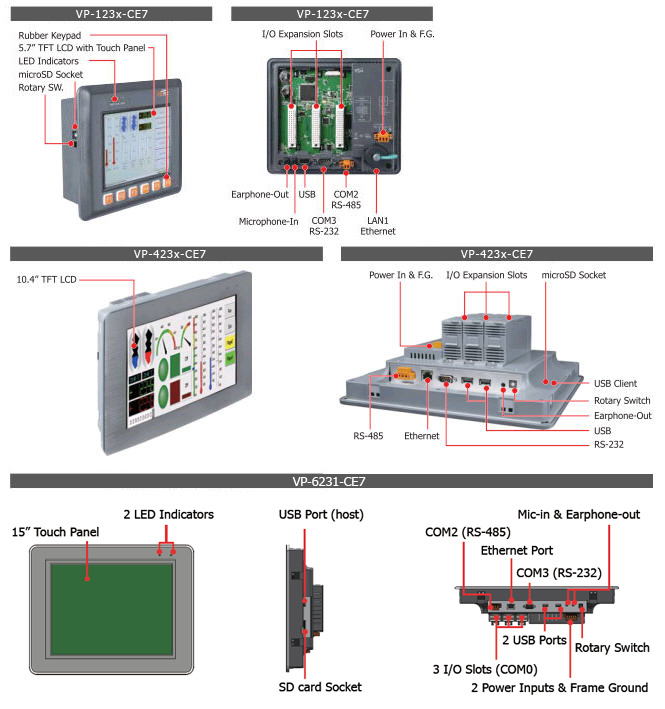

- Windows CE.NET 7.0 Inside
- Easy Remote Maintenance Via Ethernet
- FTP Server
- VCEP software
- Integrates Local/Remote I/O Modules Via RS-232/485 or Ethernet
- Provides Library for VC, C# or VB.NET
- Supports Modbus and DCON Protocols
- Development Software
- Visual Studio.NET 2008 and VC
- SDK/Demo Programs for C#, VB.NET & VC
|
| |
 |
- Cortex-A8 CPU (32-bit & 1 GHz)
- IP65 Compliant Front Panel
- 5.7"/10.4"/15" TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
- Rubber Keypad with 6 Keys
- Audio with MIC-In and Line-Out
- 64-bit Hardware Serial Number for Software Protection
- 3 Slots for High Profile I/O Modules
- Rich I/O Expansion Ability
- Ethernet
- RS-232/422/485
- FRnet
- CAN bus
- MRAM (128 KB)
- One Ethernet Port
- 2 Serial Ports (RS-232, RS-485)
- Operating Temperature: -20 ~ +70 °C
|
| |
 |
| Environment monitoring, factory automation, building management system, industrial machine control, etc. |
| |
 |
 |
| |
 |
| Models |
VP-1231-CE7 |
VP-4231-CE7 |
VP-6231-CE7 |
| System Software |
| OS |
Windows CE.NET 7.0 |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| CPU Module |
| CPU |
Cortex-A8 (32-bit and 1 GHz) |
| SDRAM |
512 MB |
| MRAM |
128 KB |
| Flash |
256 MB |
| EEPROM |
16 KB |
| Expansion Flash Memory |
microSD socket with a 4 GB microSD card (support up to 32 GB) |
SD socket with a 4 GB microSD card and a microSD adapter (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| Communication Interface |
| Ethernet Port |
RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 (host) |
1 |
2 |
| COM 0 |
Internal communication with I-87K modules in slots |
| COM 2 |
RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated. |
| RS-232 COM port |
COM3 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
COM1 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
| MMI (Man Machine Interface) |
| LCD |
5.7" TFT (Resolution 640 x 480) |
10.4" TFT (Resolution 800 x 600) |
15" TFT (Resolution 1024 x 768) |
| Touch Panel |
Yes |
| Rubber Keypad |
6 Keys |
- |
| Audio |
Microphone-In and Earphone-Out |
Earphone-Out |
Microphone-In and Earphone-Out |
| LED Indicators |
3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) |
2 LEDs (PWR, RUN) |
| I/O Expansion Slots |
| Slot Number |
3 (For High Profile I-8K and I-87K Modules Only) |
| Mechanical |
| Dimensions (W x L x H) |
182 mm x 158 mm x 125 mm |
293 mm x 231 mm x 129 mm |
381 mm x 305 mm x 139 mm |
| Ingress Protection |
Front panel: IP65 |
| Environmental |
| Operating Temperature |
-20 °C ~ +70 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Capacity |
2.5 A, 5 V supply to I/O expansion slots |
| Consumption |
0.3 A @ 24 VDC |
0.45 A @ 24 VDC |
0.65 A @ 24 VDC |
|
| |
 |
| VP-1231-CE7 CR |
PAC with WinCE 7.0 of Standard ViewPAC with 5.7" LCD and 3 I/O slots (Multi-language Version of OS) (RoHS) |
| VP-4231-CE7 CR |
PAC with WinCE 7.0 of Standard ViewPAC with 10.4” LCD and 3 I/O slots (Multilanguage Version of OS) (RoHS) |
| VP-6231-CE7 CR |
PAC with WinCE 7.0 of Standard ViewPAC with 15” LCD and 3 I/O slots (Multilanguage Version of OS) (RoHS) |
|
| |
 |
| DP-660 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting |
| MDR-60-24 |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting |
| USB-2560 CR |
4-Port Industrial USB 2.0 Hub (RoHS) |
| NS-208 CR |
8-Port Unmanaged Industrial 10/100 Base-TX Ethernet Switch (RoHS) |
|
| |
|
|
| |
|
|
