ZT-2055-IOP
ZigBee I/O Pair-connection Module with the 8-channel Isolated Digital Input and 8-channel Digital Output

~ NEW ~
Model: ZT-2055-IOP

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • 8 Channels Pair-connection of the Digital Input and Digital Output
  • DO Safe Value setting for Wireless Disconnection Monitoring
  • Configurable I/O Pairing Number
  • Surge and ESD Protection
  • Supports AES-128 Encryption for the Wireless Communication
  • DIN-Rail Mountable

The ZT-2055-IOP module is a ZigBee coordinator that offers 8 isolated channels for digital input and 8 isolated channels for digital output. An embedded I/O channel binding function means that there is no need to use an external controller.

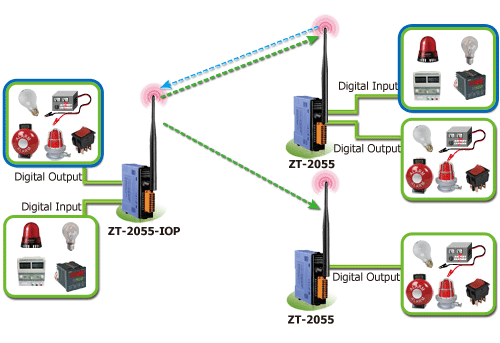

The status of each channel is bound to a remote channel of the ZT-2055. The ZT-2055-IOP continually updates the status of the DO channel of the remote ZT-2055 based on its own DI channels. It also reads the status of the DI channel of the remote ZT-2055 to synchronize its own DO channels. The ZT-2055-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Digital Input/Counter
Input Channels 8
Input Types Dry Contact Source
Wet Contact Sink/Source
Wet Contact On Voltage Level +10 VDC ~ +50 VDC
Off Voltage Level Max. +4 VDC
Dry Contact On Voltage Level Close to GND
Off Voltage Level Open
Input Impedance 10 KΩ
Overvoltage Protection ±70 VDC
Digital Output
Output Channels 8
Output Types Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ 50 VDC
Max. Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)

Communication Interface
Wireless Standards ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated)
2.4 GHz Antenna 5 dBi Omni directional
Transmission Range (LoS) 700 m (Typical)
Certification CE/FCC, FCC ID
Max. Slaves in a ZigBee Network 255
LED Indicators
Power 1 Red LED, ZigBee Device Power Indicator
ZigBee Communication 1 Green LED, ZigBee Communication Indicator
Digital Input and Output 8 Green LEDs for Digital Input
8 Red LEDs for Digital Output
Isolation
Intra-module Isolated, Field-to-Logic 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
EFT (IEC 61000-4-4) 4 kV for Power Line
Surge 3 kV for Power Line
Power
Input Voltage Range +10 VDC ~ +30 VDC
Power Consumption Max. 2.5 W
Mechanical
Flammability Fire Retardant Materials (UL 94V-0 Level)
Dimensions (L x W x H) 96 mm x 33 mm x 110 mm
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Relative Humidity 10 ~ 90% RH, Non-condensing

ZT-2055-IOP CR ZigBee I/O Pair-connection Module with the 8-channel Isolated Digital Input and 8-channel Digital Output (Host, ZigBee Coordinator) (RoHS)
ZT-2042 CR ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module (Slave, ZigBee Router) (RoHS)
ZT-2043 CR ZigBee 14-ch Isolated Digital Output Module (Slave, ZigBee Router) (RoHS)
ZT-2055 CR ZigBee 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module (Slave, ZigBee Router) (RoHS)
ZT-2060 CR ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module (Slave, ZigBee Router) (RoHS)
Important Note: ZigBee Pair-connection module is a ZigBee host to coordinate the ZigBee I/O module. Please order at least one ZT-2000 digital series module to work for ZigBee I/O pairing.

ZT-2510 CR ZigBee Repeater (Slave, ZigBee Router) (RoHS)
ZT-USBC CR USB to ZigBee Converter (ZigBee Full-function) (RoHS)
ZT-2550 CR RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) (RoHS)
ZT-2570 CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) (RoHS)
Important Note: The default pairing setting of ZT-2055-IOP is paired with the ZT-2055. If there is any pairing requirement with other ZigBee I/O modules, a ZigBee converter is required for doing the software configuration.
