tSH-700 系列
微型序列埠轉換器/分享器 |
|
| |
| |
 |
| Model: tSH-700 系列 |
|
|
 |
- 支援Baud Rate 轉換功能
- 支援Modbus RTU/ASCII轉換功能
- tSH-73x系列支援二個Master 設備存取 Slave設備功能
- Raw Data 模式適用大多數的查詢-回應協定
- 提供精簡網頁伺服器來配置組態設定 (HTTP)
- 雙電源輸入: PoE (IEEE 802.3af, Class 1)及DC插孔輸入
- RS-485方向自動控制
- 體積微型化與低功率消耗
|
|
|
| |
 |
泓格推出一系列tGW-700/tDS-700微型模組後，受到熱烈回響，因此繼續以研發、創新的精神，來擴展模組新功能以滿足使用者的各項應用需求。tSH-700是精簡型序列埠分享器，具有 "Baud Rate 轉換功能"、"Modbus RTU/ASCII 轉換功能" 及 "二個Master設備共同存取單一Slave設備功能"。還內建有 web server 提供了直覺式的網頁管理界面，讓使用者輕鬆且快速的設置參數，不需記憶指令。

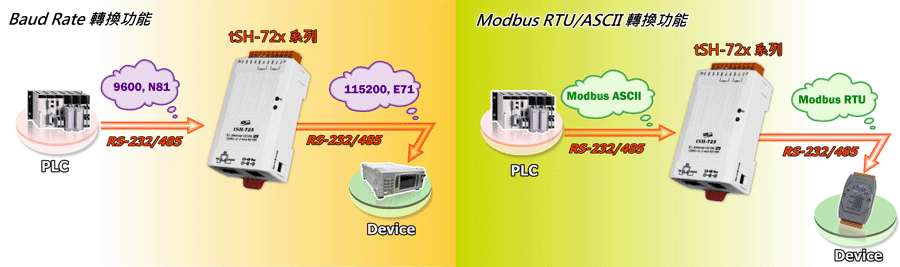

- Baud Rate 轉換功能: 此功能允許單一的Master設備與Slave設備使用不同Baud Rate及Data Format來做通訊。在 Raw Data 模式下，適用於多數不需轉換查詢-回應的協定(半雙工)，例如，DCON。當 Data Size 是小於每個序列埠內建的512 bytes buffer 大小時，也可執行全雙工通信。
- Modbus RTU/ASCII轉換功能: 此功能允許單一的Modbus RTU/ASCII Master設備與單一的Modbus RTU/ASCII Slave設備使用不同協定、不同Baud Rate及不同Data Format來做通訊。
|
 |

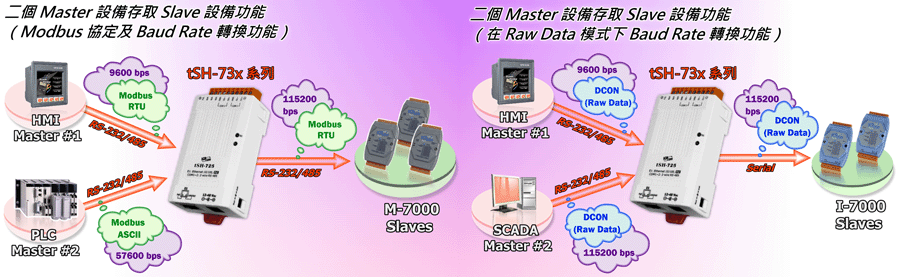

- 二個Master 設備存取 Slave設備功能: 此功能允許二個 Master 設備連接到不同序列埠來存取Slave 設備。Modbus 模式可以用來轉換Modbus RTU/ASCII 協定，而Raw Data模式可以用於DCON 或其它查詢-回應協定。然而不同Baud Rate 及不同Data Format 也可以用於不同的序列埠。若當二個Master設備所請求的訊息相同時，內建Cache功能將會除去重復的請求訊息來減少Slave設備的序列埠通訊負擔。
|
|
| 註: 建議將兩個上位機的 timeout 及 scan 間隔參數加大, 因為下位機將會有兩倍的流量負載. |
| |
 |
| |
 |
- 工廠、大樓、家庭自動化
- 從監控中心及現場控制器來存取監控產線流程
|
 |
| |
|
 |
| |
 |
| Models |
tSH-722/tSH-722i |
tSH-732/tSH-732i |
tSH-725/tSH-725i |
tSH-735/tSH-735i |
tSH-724/tSH-724i |
tSH-734/tSH-734i |
| System |
| CPU |
32-bit ARM |
| Communication Interface |
| Ethernet |
10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
PoE (IEEE 802.3af, Class 1) |
| COM1 |
3-wire RS-232 |
3-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| COM2 |
3-wire RS-232 |
3-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
| COM3 |
– |
3-wire RS-232 |
– |
2-wire RS-485 |
– |
3-wire RS-232 |
| Self-Tuner |
– |
Yes, automatic RS-485 direction control |
| RS-485 |
Bias Resistor |
– |
Yes, 1 KΩ |
| Node |
– |
254 (max.) |
| UART |
16c550 or compatible |
| Isolation |
3000 VDC for only tSH-722i / 732i / 725i / 735i / 724i / 734i |
| ESD Protection |
+/-4 kV for only tSH-722i / 732i / 725i / 735i / 724i / 734i |
| COM Port Format |
| Baud Rate |
115200 bps Max. |
| Data Bit |
5, 6, 7, 8 |
| Parity |
None, Odd, Even, Mark, Space |
| Stop Bit |
1, 2 |
| Power |
| Power Input |
PoE |
IEEE 802.3af, Class 1 |
| DC Jack |
+12 ~ 48 VDC |
| Power Consumption |
0.07 A @ 24 VDC |
| Mechanism |
| Connector |
10-Pin Removable Terminal Block x 1 |
| Mounting |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
|
| |
 |
| tSH-700 Series (Tiny Serial Port Converter/Sharer with PoE and DC jack) : Includes one CA-002 cable. |
| Model (Non-Isolated) |
Model (Isolated) |
RS-232 |
RS-485 |
Application |
COM1 |
COM2 |
COM3 |
| tSH -722 CR |
tSH -722i CR |
2 |
- |
Converter |
3-wire RS-232 |
3-wire RS-232 |
- |
| tSH -725 CR |
tSH -725i CR |
- |
2 |
2-wire RS-485 |
2-wire RS-485 |
- |
| tSH -724 CR |
tSH -724i CR |
1 |
1 |
2-wire RS-485 |
3-wire RS-232 |
- |
| tSH -732 CR |
tSH -732i CR |
3 |
- |
Sharer |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
| tSH -735 CR |
tSH -735i CR |
- |
3 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| tSH -734 CR |
tSH -734i CR |
2 |
1 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
|
| |
 |
| Model (非隔離型) |
| tSH-722 CR |
2 埠 RS-232 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-725 CR |
2 埠 RS-485 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-724 CR |
1 埠 RS-232, 1 埠 RS-485 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-732 CR |
3 埠 RS-232 及 PoE 供電的微型序列埠分享器 (RoHS) |
| tSH-735 CR |
3 埠 RS-485 及 PoE 供電的微型序列埠分享器 (RoHS) |
| tSH-734 CR |
2 埠 RS-232, 1 埠 RS-485 及 PoE 供電的微型序列埠分享器 (RoHS) |
| 附配件: 一條 CA-002 cable |
| Model (隔離型) |
| tSH-722i CR ~ NEW ~ |
2 埠RS-232, 電源隔離 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-725i CR ~ NEW ~ |
2 埠隔離型 RS-485 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-724i CR ~ NEW ~ |
1 埠隔離型 RS-232, 1 埠隔離型 RS-485 及 PoE 供電的微型序列埠轉換器 (RoHS) |
| tSH-732i CR ~ NEW ~ |
3 埠RS-232, 電源隔離 及 PoE 供電的微型序列埠分享器 (RoHS) |
| tSH-735i CR ~ NEW ~ |
3 埠隔離型 RS-485 及 PoE 供電的微型序列埠分享器 (RoHS) |
| tSH-734i CR ~ NEW ~ |
2 埠隔離型 RS-232, 1 埠隔離型 RS-485 及 PoE 供電的微型序列埠分享器 (RoHS) |
| 附配件: 一條 CA-002 cable |
|
| |
 |
| CA-002 |
DC connector to 2-wire power cable, 0.3 M |
| DN-09-2 |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header
Includes : CA-0915 x 2 (9-pin Male-Female D-sub Cable 1.5m) |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header
Includes : CA-0910F x 2 (9-pin Female-Female D-sub Cable 1.0m) |
| NS-205A CR |
Unmanaged 5-port Industrial Ethernet Switch with Power Input +12 VDC ~ +56 VDC (RoHS) |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |
| FRA05-S12-SU |
12 V/0.58 A (max) Power Supply. |
|
| |
 |
|
| |
|
