Input |
Voltage range |
100-240 VAC |
Frequency |
50/60 Hz |
Input current |
0.3 A(rms) for 115 VAC, 0.2 A (rms) for 230 VAC |
Insulation resistance |
50 MOhm min from output to ground |
Inrush current |
30 A @ 115 VAC, or 50 A @ 230 VAC at 25°C cold start. |
Output |
Voltage |
12 VDC |
Output current |
0.58 A |
Ripple |
±3% p-p max. |
Over voltage protection |
Yes |
Over current protection |
Yes |
Temperature coefficient |
All outputs ±0.03%/°C max. |
Efficiency |
75% min. while measuring at normal line and rated load. |
Hold-up time |
10msec min. |
Line regulation |
±1% max for input voltage change between input voltage range. |
Load regulation |
±3% variations from min to max output current. |
General |
MTBF |
50,000 hours min at full load at 25°C ambient. MIL-HDBK-217F |
Environmental |
Operating Temperature |
-10 °C ~ +70°C |
Storage Temperature |
-20 °C ~ +85°C |
Humidity |
10% ~ 95% RH, non-condensing |
Derating |
Derated from 100% at +40 °C linearly to 50% at 70 °C. |
Standards |
Safety standards |
Meets or exceeds UL1950,CSA C22.2, TUV EN60950, IEC950. (Pending) |
EMI |
Meets conduction limits of FCC Part 15 Class B, CISPR 22.2 |
Others |

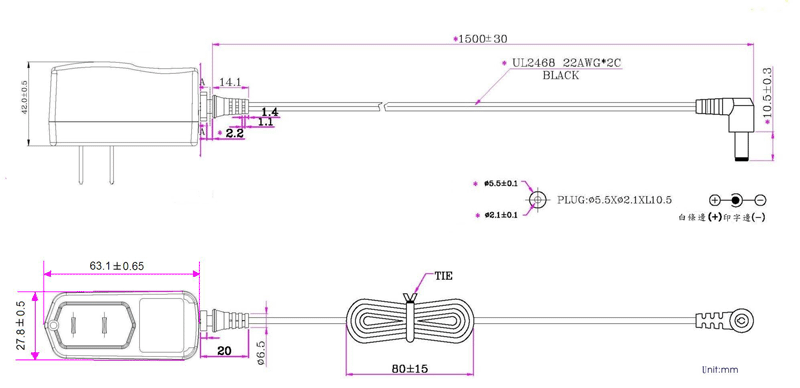

Dimension (W x H x D) |
27.8 mm x 42.0 mm x 63.1 mm |
DC plug |
5.5 x 2.1 x 10.5 mm 90° |
DC cable |
UL2468 22AWG x 2C L = 1500 mm |
