PPDS-700-IP67 Series
Programmable Device Servers with 4 RS-232 or RS-485 Ports, PoE and IP67 Casing |
|
| |
| |
 |
Model: PPDS-741-IP67
PPDS-742-IP67
PPDS-743-IP67 |
|
|
 |
- Incorporate Serial Devices in an Ethernet network
- VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
- Watchdog Timer suitable for use in harsh environments
- 10/100 Base-TX Ethernet, RJ-45 x 1
(Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Built-in High Performance MiniOS7 from ICP DAS
- Self-Tuner ASIC Controller on the RS-485 Port
- Powerful Programmable Device Server
- Rugged RJ-45 Connector for anti-vibration and shock
- Plastic Casing with IP67 Waterproof
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Supports PoE (IEEE 802.3af, Class 1)
- Low power consumption
- RoHS Compliant & no Halogen
|
|
|
| |
 |
The PPDS-700-IP67 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PPDS-700-IP67 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-700-IP67 series is able to meet the demands of every network-enabled application.
The PPDS-700-IP67 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-700-IP67 up in just one second and gives you fastest responses.
The PPDS-700-IP67 is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.
The PPDS-700-IP67 supports PoE (Power over Ethernet) function that allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation. When there is no PoE switch on site, the PPDS-700-IP67 accepts power input from a +12 VDC ~ +48 VDC adapter.
When using PoE devices such as the PPDS-700-MTCP, PPDS-700-IP67 and PET-7000 (Ethernet I/O module with PoE), you can select the ICP DAS "PoE" switch — "NS-205PSE" — as the power source. The NS-205PSE automatically detects whether the connected devices are PoE devices or not. This mechanism ensures that the NS-205PSE will work with both PoE and non-PoE devices simultaneously.
As a power source for PoE devices, the NS-205PSE requires a power input ranging from +46 VDC ~ +55 VDC. |
| |
 |
- Factory Automation
- Transportation Automation
- Chemical Industry Automation
- Marine Automation
|
| |
 |
| Models |
PPDS-741-IP67 |
PPDS-742-IP67 |
PPDS-743-IP67 |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| EEPROM |
16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |
| Communication Interface |
| COM1 |
5-wire RS-232 |
| COM2 |
Isolated 2-wire RS-485 |
| COM3 |
Isolated 2-wire RS-485 |
5-wire RS-232 |
5-wire RS-232 |
| COM4 |
Isolated 2-wire RS-485 |
Isolated 2-wire RS-485 |
5-wire RS-232 |
| Ethernet |
10/100 Base-TX, RJ-45 port (Auto-negotiating, Auto MDI/MDI-X, LED indicators), PoE (IEEE 802.3af, Class 1) |
| RS-485 |
Bias Resistor |
Yes, 1 KΩ |
| Node |
245 (max.) |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4 |
| Parity |
None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Stop Bits |
1, 2: for COM1 ~ COM4 |
| Baud Rate |
115200 bps Max. |
| LED Indicators |
| System |
Red: Sys, PoE |
| Ethernet |
Green: 10/100 M (E1)
Orange: Link/Act (E1) |
| COM1 ~ COM4 |
Green: RxD
Orange: TxD |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+12 VDC ~ +48 VDC(non-regulated) or PoE (IEEE 802.3af, Class 1) |
| Power Consumption |
2.2 W |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Casing |
Plastic casing with IP67 waterproof protection |
| Dimension (W x H x D) |
85 mm x 76 mm x 137 mm (89 mm x 90 mm x 138 mm for /DIN versions) |
| Installation |
Wall mounting (DIN-Rail mounting for /DIN versions) |
| Environment |
| Operating Temperature |
-10 °C ~ +60 °C |
| Storage Temperature |
-10 °C ~ +60 °C |
| Humidity |
100% RH for operating temperature -10 °C ~ +60 °C |
|
Note:
5-wire RS-232: TxD, RxD, CTS, RTS, GND
Isolated 2-wire RS-485: DATA+, DATA-, GND; Self-Tuner Inside; 2500 Vrms Isolation |
| |
 |
| Model |
RS-232 |
RS-485 |
CPU |
Ethernet |
Baud Rate |
COM1 |
COM2 |
COM3 |
COM4 |
| PPDS-741-IP67 |
1 |
3 Isolated |
80186-80 MHz or compatible |
10/100 Base-TX,
PoE |
115200 bps |
5-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| PPDS-742-IP67 |
2 |
2 Isolated |
5-wire RS-232 |
2-wire RS-485 |
5-wire RS-232 |
2-wire RS-485 |
| PPDS-743-IP67 |
3 |
1 Isolated |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
2-wire RS-485 |
|
| |
 |
| PPDS-741-IP67 CR ~ Available soon~ |
Programmable Device Server with 1 RS-232 port, 3 RS-485 ports, PoE and IP67 Casing (RoHS)
Includes one 5-pin Waterproof Power Plug (4SIO1K0000013) |
| PPDS-742-IP67 CR |
Programmable Device Server with 2 RS-232 ports, 2 RS-485 ports, PoE and IP67 Casing (RoHS)
Includes one 5-pin Waterproof Power Plug (4SIO1K0000013) |
| PPDS-743-IP67 CR ~ Available soon~ |
Programmable Device Server with 3 RS-232 ports, 1 RS-485 port, PoE and IP67 Casing (RoHS)
Includes one 5-pin Waterproof Power Plug (4SIO1K0000013) |
|
| |
 |
| GPSU06U-6 CR |
24 VDC/0.25 A, 6 W Power Supply |
| MDR-20-24 CR |
24 VDC/1 A, 24 W Power Supply with DIN-R |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch (RoHS) |
| DIN-KA52F-48 CR |
48V/0.52A, 25 W Power Supply with DIN-Rail Mounting (RoHS, for NS-205PSE) |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |

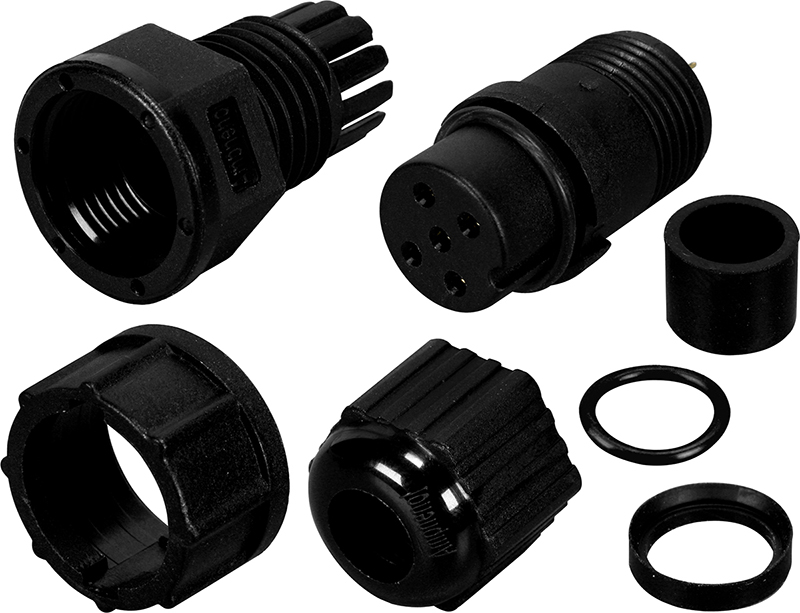

| 4SIO1K0000013 |
5-pin Waterproof Power Plug |
|
| |
 |
|
| |
|
|
| |
|
|
