TPD-703/TPD-703-64

~ NEW ~
Model: TPD-703/TPD-703-64

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RTC (Real Time Clock)
  • Free HMIWorks development tool
  • Supports C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP/RTU protocol

TPD 7 inch series is a series of touch HMI designed for building and home automation with high resolution TFT color touch screen. The TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. Besides, TPD-703/703-64 provides 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC), etc. Meantime, it can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.

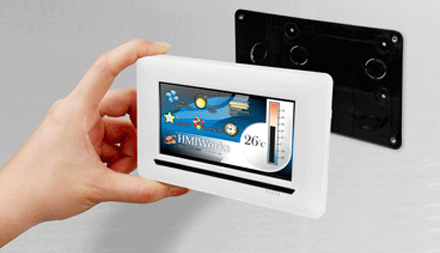

External Wall Box (EWB-T70)

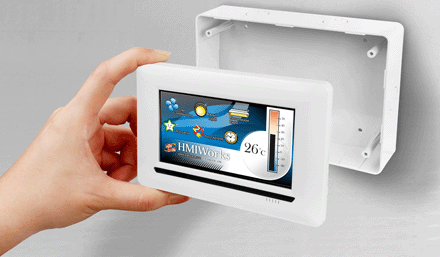

Outlet Box (OB170)

Models
TPD-703
TPD-703-64
CPU Module
CPU
32-bit RISC CPU
Memory Expansion
16 MB SDRAM/16 MB Flash
64 MB SDRAM/64 MB Flash
Real Time Clock (RTC)
Yes
Buzzer
Yes
Rotary Switch (0~9)
Yes
Communication Interface
Serial Port COM1
RS-485 (including Self-Tuner) ; Non-isolation
COM2
RS-232 (3-pin) ; Non-isolation
Ethernet
RJ-45 x 1, 10/100 Base-TX
MMI (Main Machine Interface)
LCD
7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3
Backlight Life
20,000 hours
Brightness
250 cd/m2
400 cd/m2
Touch Panel
4-wire, analog resistive; Light Transmission: 80%
Reset Button
Yes
Electrical
Powered from Terminal Block
+12 ~ 48 VDC
Powered from PoE
IEEE 802.3af, Class1 (48 V)
Power Consumption
3.6 W
Mechanical
Dimensions (W x L x H)
217 mm x 153 mm x 33 mm
Installation
Wall Mount
Ingress Protection
Front Panel: IP40
Environmental
Operating Temperature
-10 ~ +60°C
Storage Temperature
-20 ~ +70°C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing

TPD-703 CR 7” Touch HMI device with RS-232 (3-pin, Non-isolation), RS-485 (including Self-Tuner, Non-isolation), RTC, Ethernet, PoE (RoHS)
TPD-703-64 CR 7” Touch HMI device with RS-232 (3-pin, Non-isolation), RS-485 (including Self-Tuner, Non-isolation), RTC, Ethernet, PoE (RoHS)

1C016 2.4 mm Screw driver
NS-208PSE CR Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS)
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
EWB-T70 External Wall Box for TPD-703/TPD-703-64 series
OB170 Outlet Box for TPD-703/TPD-703-64 Devices
