TPD-432F-H/TPD-433F-H
~ NEW ~ ~ NEW ~
Model: TPD-432F-H Model: TPD-433F-H

TPD-43xF-H is a series of touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • Multiple serial communication interfaces
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Modbus TCP, Modbus RTU and DCON protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 50°C
  • Supports user-defined third party protocol (C language)

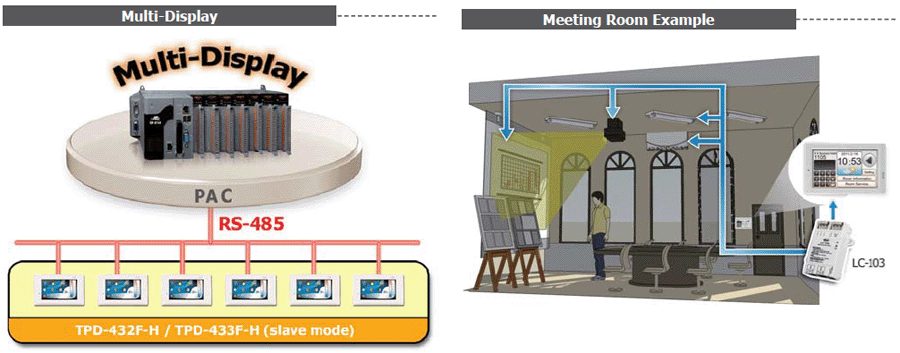

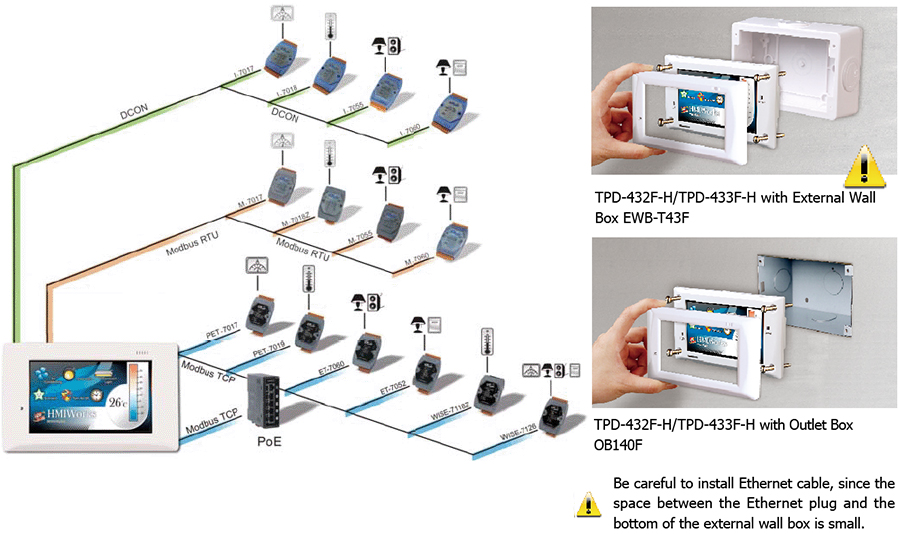

TPD-43xF-H with External Wall Box, EWB-T43F (optional)
TPD-43xF-H with Outlet Box, OB140F (optional)


Models TPD-432F-H TPD-433F-H
CPU Module
CPU 32-bit RISC CPU
Memory Expansion 16 MB SDRAM / 16 MB Flash
Real Time Clock (RTC) Yes
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
COM1 RS-485 (including Self-Tuner) RS-485 (including Self-Tuner)
COM2 RS-485 (including Self-Tuner) RS-232 (3-pin)
Ethernet - RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client Firmware updates only
MMI (Main Machine Interface)
LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 400 cd/m2
Touch Panel Yes
LED Indicator Yes
Reset Button Yes
Electrical
Powered from Terminal Block +12 ~ 48 VDC
Powered from PoE - IEEE 802.3af, Class1 (48 V)
Power Consumption 2.5 W
Mechanical
Dimensions (W x L x H) 140 mm x 87 mm x 42mm
Installation Wall Mount
Ingress Protection Front Panel: IP40
Environmental
Operating Temperature -30 ~ +50°C
Storage Temperature -30 ~ +80 °C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

TPD-432F-H CR 4.3" Touch HMI device with RS-485 x 2, USB, RTC (RoHS)
TPD-433F-H CR 4.3" Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (RoHS)

4PCD-001 TouchPAD Accessory Package
  • Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD
  • supported models: TPD-28xU series, TPD-43x series, TPD-43xF series, VPD-13x series.
CA-USB10 USB to 5P Mini-USB, 28AWG, 1.5 m
1C016 2.4 mm Screw driver
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR 24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
EWB-T43F External Wall Box for TPD-432F-H/433F-H
OB140F Outlet Box for TPD-432F-H/433F-H
OB140FP Plastic outlet Box for TPD-432F-H/433F-H
