TPD-432F/TPD-433F
~ Phased out ~ ~ Phased out ~

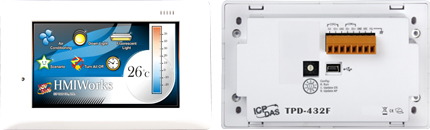

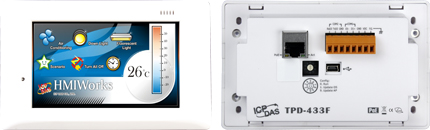

Model: TPD-432F Model: TPD-433F

TPD-43xF is a series of tiny touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen and can be used to replace regular electrical wall-mount outlets. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet) (only TPD-433F)
  • Multiple serial communication interfaces
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Modbus TCP, Modbus RTU and DCON protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 50°C
  • Supports user-defined third party protocol (C language)

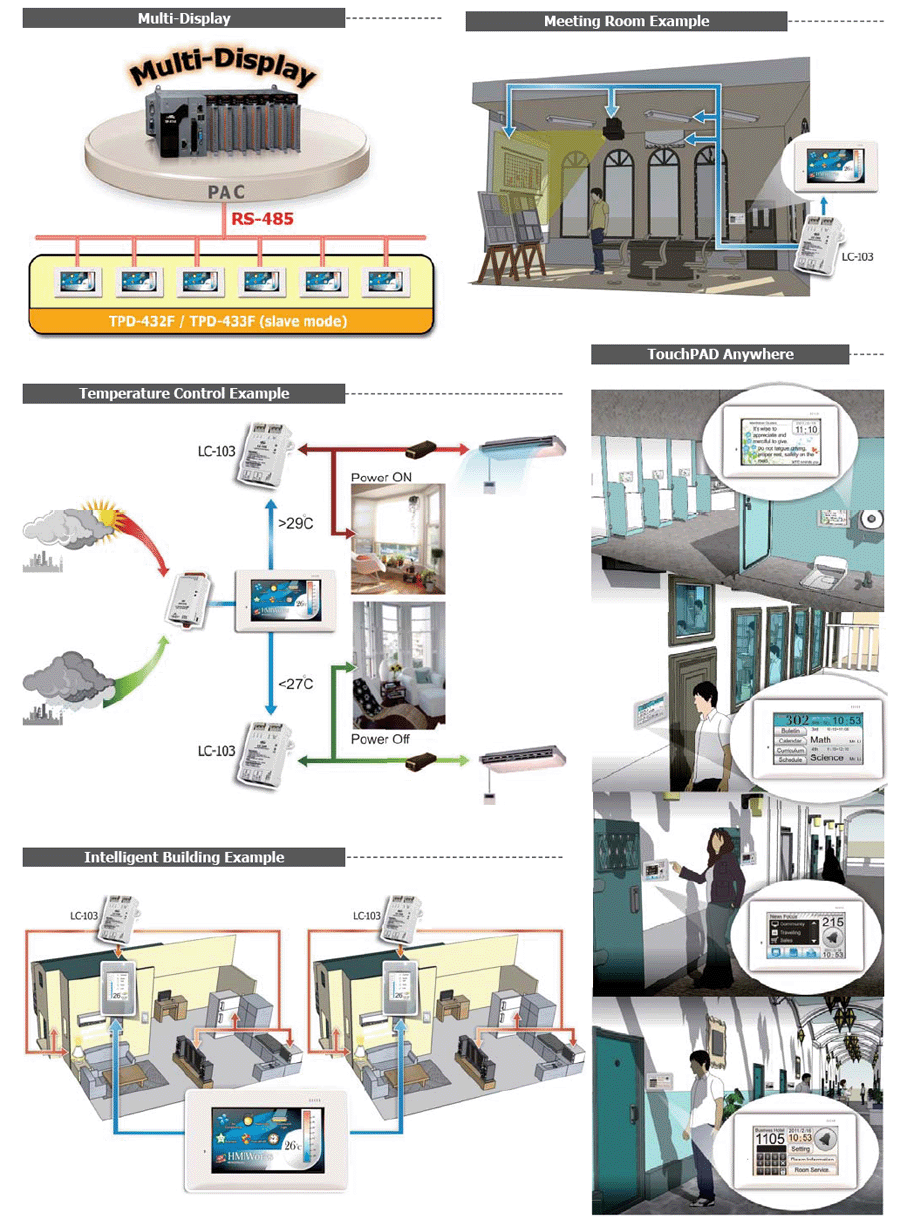

TPD-43x with External Wall Box, EWB-T43 (optional)
TPD-43x with Outlet Box, OB120 (optional)
TPD-43x-EU for European 86 x 86 mm outlet box

TPD-43xF with External Wall Box, EWB-T43F (optional)
TPD-43xF with Outlet Box, OB140F (optional)


Models TPD-432F TPD-433F
CPU Module
CPU 32-bit RISC CPU
Memory Expansion 16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC) Yes
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
COM1 RS-485 (including Self-Tuner) RS-485 (including Self-Tuner)
COM2 RS-485 (including Self-Tuner) RS-232 (3-pin)
Ethernet - RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client Firmware updates only
MMI (Main Machine Interface)
LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 400 cd/m2
Touch Panel Yes
LED Indicator Yes
Reset Button Yes
Electrical
Powered from Terminal Block +10 ~ 30 VDC
Powered from PoE - IEEE 802.3af, Class1 (48 V)
Power Consumption 2.5 W
Mechanical
Dimensions (W x L x H) 140 mm x 87 mm x 42mm
Installation Wall Mount
Ingress Protection Front Panel: IP40
Environmental
Operating Temperature -20 ~ +50°C
Storage Temperature -30 ~ +80 °C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

TPD-432F CR 4.3" Touch HMI device with RS-485 x 2, USB, RTC (RoHS)
TPD-433F CR 4.3" Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (RoHS)


TPD-432F
TPD-433F
External Wall Box
EWB-T43F
EWB-T43F
Outlet Box
OB140F, OB140FP
OB140F, OB140FP
Not compatible
4PCD-001 TouchPAD Accessory Package
  • Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD
  • supported models: TPD-28xU series, TPD-43x series, TPD-43xF series, VPD-13x series.
CA-USB10 USB to 5P Mini-USB, 28AWG, 1.5 m
1C016 2.4 mm Screw driver
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR 24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
EWB-T43F External Wall Box for TPD-432F/TPD-433F
OB140F Outlet Box for TPD-432F/TPD-433F
OB140FP Plastic outlet Box for TPD-432F/TPD-433F
