TPD-430/TPD-430-EU/TPD-433/TPD-433-EU |
|
|
| ~ Phased out ~ |
|
 |
 |
Model: TPD-430/TPD-433 |
Model: TPD-430-EU/TPD-433-EU |
|
| |
 |

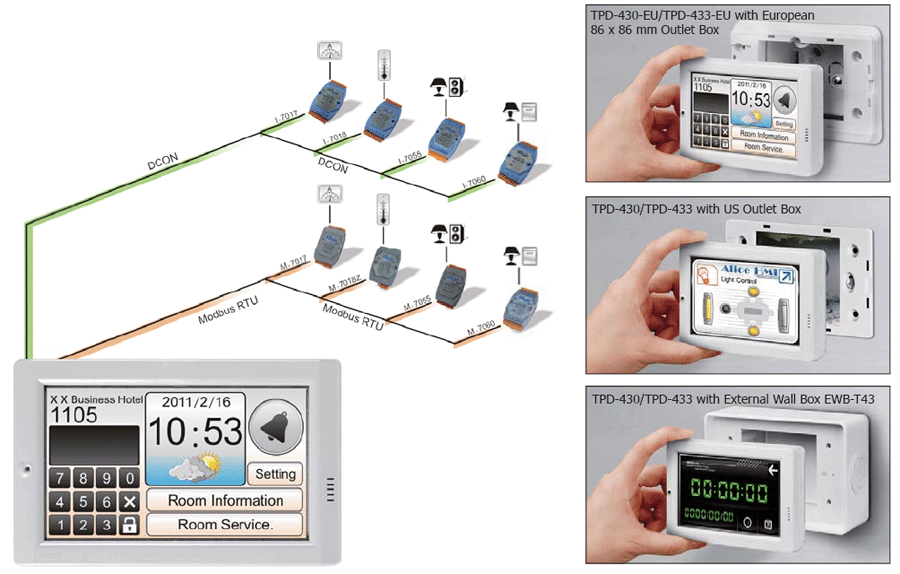

TPD-43x/TPD-43x-EU is a series of tiny touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market. |
| |
 |
- PoE (Power over Ethernet)
- Modbus TCP, Modbus RTU and DCON protocol
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- Speaker or buzzer
- Free HMIWorks development tool
- Supports C language and Lader Designer
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 50°C
- Supports user-defined third party protocol (C language)
|
| |
 |

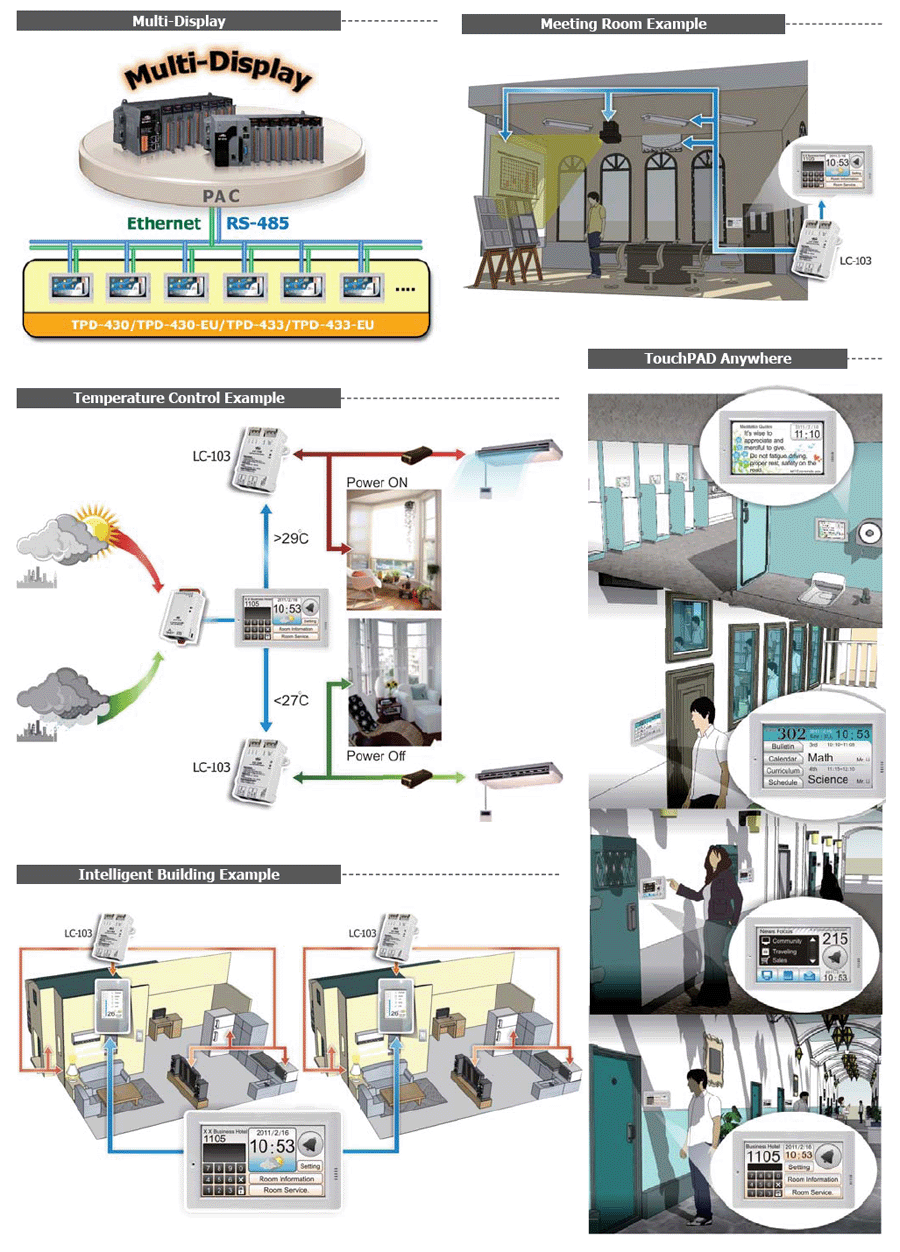

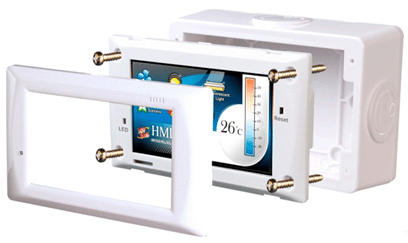

| TPD-43x with External Wall Box, EWB-T43 (optional) |
 |
|

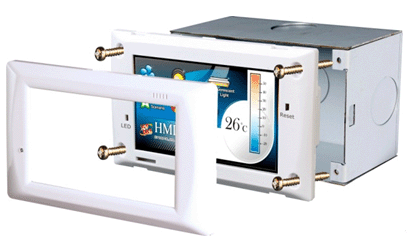

| TPD-43x with Outlet Box, OB120 (optional) |
 |
|
| TPD-43x-EU for European 86 x 86 mm outlet box |
 |
|
|
|
| |
| TPD-43xF with External Wall Box, EWB-T43F (optional) |
 |
|
| TPD-43xF with Outlet Box, OB140F (optional) |
 |
|
|
| |
 |
 |
 |
| |
 |
| Models |
TPD-430 |
TPD-430-EU |
TPD-433 |
TPD-433-EU |
| CPU Module |
| CPU |
32-bit RISC CPU |
| Memory Expansion |
16 MB SDRAM / 8 MB Flash |
| Real Time Clock (RTC) |
Yes |
| Buzzer |
Yes |
| Rotary Switch (0~9) |
Yes |
| Communication Interface |
| Serial Port |
RS-485 (including Self-Tuner) |
| Ethernet |
- |
Yes (RJ-45 x 1, 10/100 Base-TX) |
| USB 1.1 Client |
Firmware updates only |
| MMI (Main Machine Interface) |
| LCD |
4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicator |
Yes |
| Reset Button |
Yes |
| Electrical |
| Powered from Terminal Block |
+10 ~ 30 VDC |
| Powered from PoE |
- |
IEEE 802.3af, Class1 (48 V) |
| Power Consumption |
2.5 W |
| Mechanical |
| Dimensions (W x L x H) |
126 mm x 82 mm x 24 mm |
126 mm x 92 mm x 29 mm |
126 mm x 82 mm x 24 mm |
126 mm x 92 mm x 29 mm |
| Installation |
Wall Mount (Suitable for the outlet box in United States) |
Wall Mount (Suitable for the European 86mm x 86mm outlet box) |
Wall Mount (Suitable for the outlet box in United States) |
Wall Mount (Suitable for the European 86mm x 86mm outlet box) |
| Environmental |
| Operating Temperature |
-20 ~ +50°C |
| Storage Temperature |
-30 ~ +80 °C |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
|
| |
 |
TPD-430 CR |
4.3" Touch HMI device with RS-485, USB, RTC, Suitable for the Outlet Box in United States (RoHS) |
TPD-430-EU CR |
4.3" Touch HMI device with RS-485, USB, RTC, Suitable for the European 86 x 86 mm Outlet Box (RoHS) |
TPD-433 CR |
4.3" Touch HMI device with Ethernet, RS-485, USB, RTC, Suitable for the Outlet Box in United States (RoHS) |
TPD-433-EU CR |
4.3" Touch HMI device with Ethernet, RS-485, USB, RTC, Suitable for the European 86 x 86 mm Outlet Box (RoHS) |
|
| |
 |
| |
TPD-430 |
TPD-430-EU |
TPD-433 |
TPD-433-EU |
| External Wall Box |
EWB-T43 |
|
EWB-T43 |
|
| Outlet Box |
OB120 |
|
OB120 |
|
|
 Not compatible |
|
 |
| 4PCD-001 |
TouchPAD Accessory Package
- Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD
- supported models: TPD-28xU series, TPD-43x series, TPD-43xF series, VPD-13x series.
|
| CA-USB10 |
USB to 5P Mini-USB, 28AWG, 1.5 m |
| 1C016 |
2.4 mm Screw driver |
| MDR-60-24 CR |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS) |
| DIN-KA52F CR |
24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS) |
| EWB-T43 |
External Wall Box for TPD-430/TPD-433 |
| OB120 |
Outlet Box for TPD-280/TPD-280U/TPD-283/TPD-430/TPD-433 Devices |
| LC-103 |
Lighting Control Module with RS-485 |
|
| |
 |
|
| |
|
|
| |
|
|
