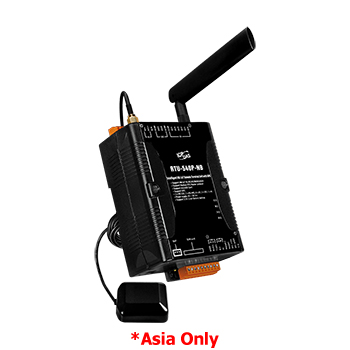

New Product Release: RTU-540P-NB
M2M NB-IoT Remote Solution - Intelligent NB-IoT Remote Terminal Unit with GPS (Asia only)
Mar. 30, 2020 -
-
RTU-540P-NB is an intelligent Active LTE NB-IoT Remote Terminal Unit with GPS. With the high performance 32 bit CPU and RTU-540P-NB, it is suit for hard industrial environment. When connecting with NB-DA Server or MQTT Broker, the user can control the devices connected to the RTU-540P-NB from the remote control center. It features LTE NB-IoT module, 6 digital inputs, 2 digital outputs, 1 analog input, 1 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the data of local I/O, GPS or Modbus device via LTE NB-IoT by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, RTU-540P-NB is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.
-
- Features:
- Support LTE NB-IoT B1/B3/B5/B8/B20/B28
- Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
- Support MQTT
- Support micro SD Card
- Support GPS function
- Built-in Watch-dog Function
- Power Reverse Polarity Protection
- Support 3.7V Li-ion Battery backup
- Power supply +10 VDC to +30 VDC
-
Please refer to the following links for more product information: http://m2m.icpdas.com/RTU-540P-NB.html
Datasheet can be downloaded from: http://m2m.icpdas.com/datasheet/RTU-540P-NB_Datasheet.pdf
