- New Product Release: PM-4324A-100P
Multi-circuit Smart Power Meter
Oct. 24, 2019 -

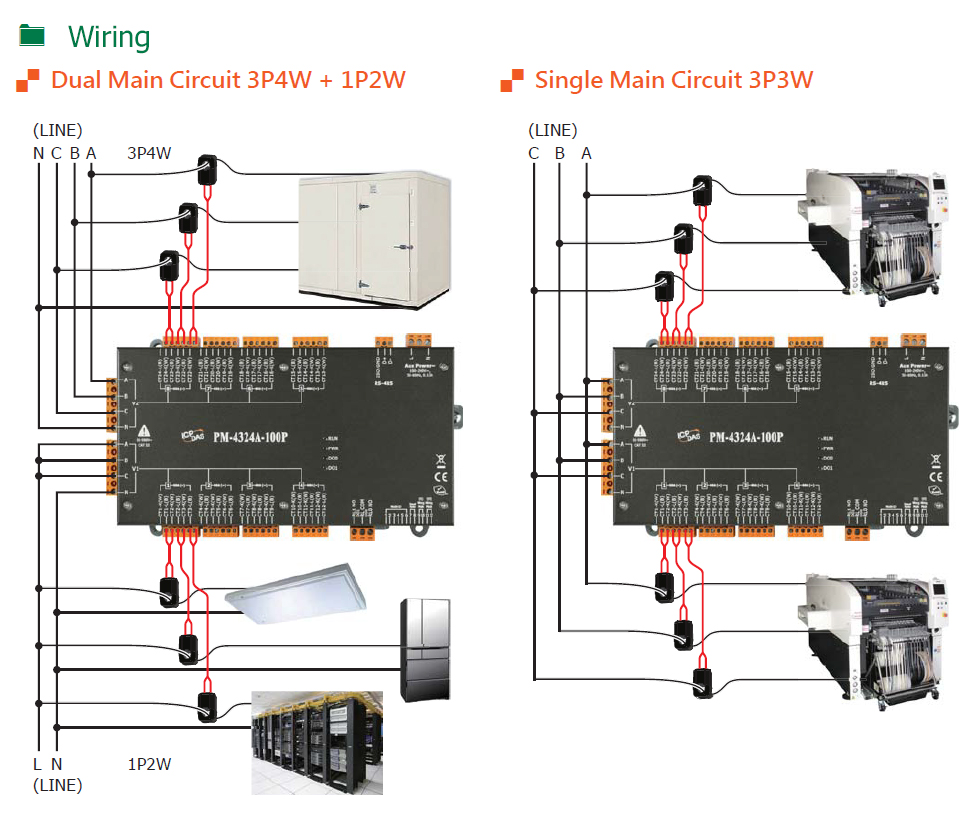

- Introduction:The PM-4324A-100P multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits.
The PM-4324A-100P is the same model as the PM-4324, except for the AC Measurement. The PM-4324A-100P has 2 separate main circuit inputs that can use in the different power system. - Features:
- 8 Three Phase Circuits or 24 Single Phase Circuits
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- 2 Independent main circuit inputs for PM-4324A series
- Current Measurements Up to 400 A with Different CT Ratio
- Voltage Measurements Up to 500 V
- Easy install with split core CT
- W Accuracy Better than 0.5% (PF=1)
- Support RS-485, Ethernet or CAN bus Interface
- Support 2 Power Relay Output (Form A)
- Total Harmonic Distortion (THD)
-
-
PM-4324A-100P Website:
http://www.icpdas.com/root/product/solutions/intelligence_power_meter/pm_series/pm-4324.html
