New Product Release: UA-2241M
IIoT Communication Server, with 2 Ethernet Port
Oct. 23, 2019
-
Introduction:
UA-2241M is a new member of IIoT (Industrial IoT) communication servers developed by ICP DAS. The built-in OPC UA Server, MQTT Broker and Client functions meet the requirements of connecting with MES, ERP, and SCADA. UA series could access I/O modules and controllers in the field via communication interface such as Ethernet, RS-232, and RS-485 or through protocols like Modbus TCP/RTU/ASCII, MQTT and EtherNet/IP. UA series connect IT to OT and integrate all devices information into the Cloud. This allows managers to improve production performance and enhance their factory competitiveness for Industrial IoT.
Compared with UA-52xx series, UA-2241M has one more Ethernet port and one more USB 2.0 (Host) communication interface. In addition, both of the RS-485 ports on UA-2241M are with isolation protection to assure users at ease.
Features:
UA-2241M IIoT communication servers have following features:
- Built-in OPC UA Server Service
- Built-in MQTT Broker and Client Service
- I/O Data Directly Save into Remote Database & Local Side Log File
- Support Logic Control IFTTT and Notification of Social Media APPs (such as: LINE, Facebook, Twitter, Weibo...)
- Support Ethernet and Serial Communications: MQTT, EtherNet/IP, Modbus TCP/RTU/ASCII
- Provide Function Wizard Web UI for Step-by-step Setup
- Support Cloud Platform Connections such as: Microsoft Azure, Amazon AWS, IBM Bluemix…etc.
-
Comparison Table (Hardware)
Model |
UA-5231M |
UA-2241M |
Product Picture |
|
|
Dimension (mm) |
117 x 126 x 58 |
33 x 160 x 129 |
Ethernet |
RJ-45 x 1 |
RJ-45 x 2 |
USB 2.0 (host) |
1 |
2 |
COM Port |
2 x RS-232 (1 Console)
2 x RS-485 (1 Isolated) |
2 x RS-232 (1 Console)
2 x RS-485 (2 Isolated) |
COM Port Expansion |
- |
Support optional XV-511i to expand 4 RS-485 ports |
-
Applications:

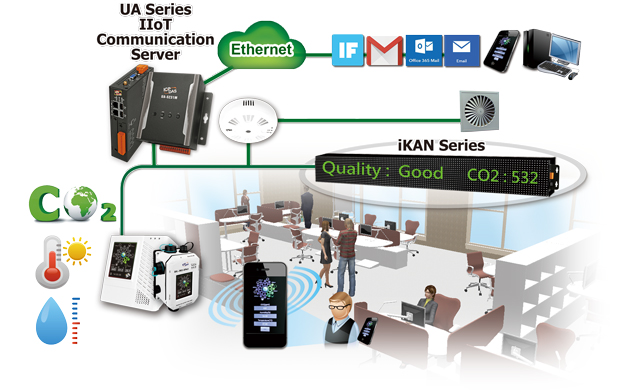

● CO2 Concentrator Monitoring and Notify Application
In-door air quality monitoring combines ICP DAS iKAN and Environment Sensors to monitor the concentration of air. UA can turn on ventilation fans when the data reach the alarm level. With the function of IFTTT, UA can send notification to LINE, FB, Gmail or other mail providers to notify users of this event occurs.
-
-

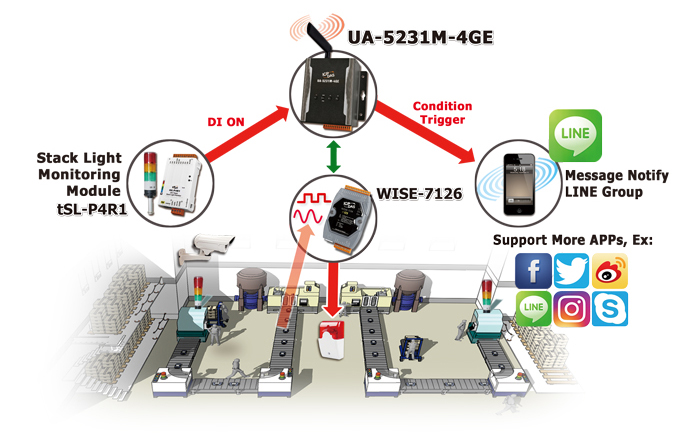

● Anomaly Alert LINE Group Message Notify Application
For some Buildings and Industrial fields, to follow information from these spots in real-time is very important. UA support active and non-active signal trigger, also through IFTTT mechanism, UA would send notification messages to managers need to be notified.
-
Ordering Information:
UA-2241M CR |
IIoT Communication Server (Metal) with 2 Ethernet Ports (RoHS) |
-
-
