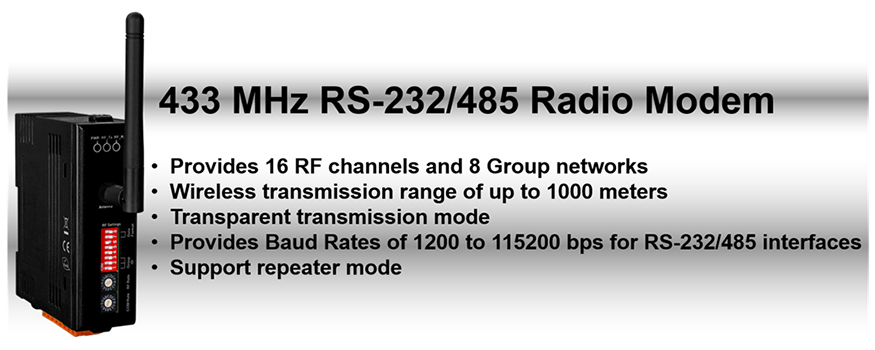

- New Product Release: RFU-433
433 MHz RS232/485 Radio Modem
Apr. 15, 2019 -
-
The RFU-433 is an RS-232/RS-485 to 433 MHz radio modem that can be used to convert data from an RS-232/RS-485 device to RF message and transmitted in transparent mode via the 433 MHz ISM frequency band.
The RFU-433 provides a maximum line of sight (LOS) transmission distance of 500 meters at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-433 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful to avoid interference encountered when two RFU-433 networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different RFU-433 networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby makes it simple for system maintenance when the RFU-433 modem needs to be replaced. -
-
Although the Baud Rate of the 433 MHz wireless spectrum is lower than 2.4G technology, the advantage of the 433 MHz band is the ability to communicate over a wide area. Consequently, this frequency is suitable when the application requires less data to be transmitted, or when there is a long time interval between transmissions, but the transmission is over a long distance transmission, such as: when monitoring the temperature or rainfall, or when monitoring and controlling solar panels, etc.
- Features:
- 433 MHz Radio Frequency
- 16 RF channels with 100 kHz channel spacing
- Provides RF Baud Rates from 650 to 57600 bps
- RF output power default 10 dBm, maximum 19 dBm
- Wireless line of sight (LOS) transmission range of up to 1000 meters at an RF Baud Rate of 9600 bps
- Transparent transmission mode
- Message package is up to 512 bytes
- Provides Baud Rates from 1200 to 115200 bps for both the RS-232 and RS-485 interfaces
- ESD Protection: Contact +/-4 kV
- Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a photocoupler
-
-
