Introduction:

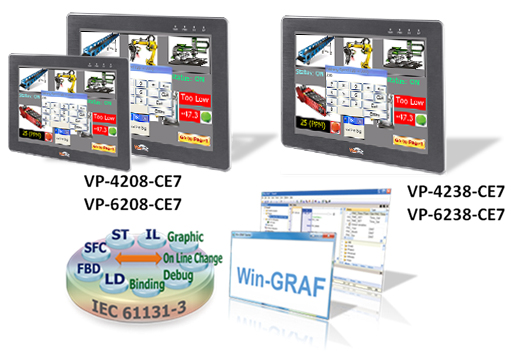

ICP DAS Win-GRAF Series releases the new models: VP-42x8-CE7/ VP-62x8-CE7 ViewPAC with 10.4”/15” Touch LCD.
VP-4208-CE7/ VP-6208-CE7 / VP-4238-CE7/ VP-6238-CE7 are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a Cortex-A8 (720 MHz/1 GHz) CPU, TFT LCD and a variety of connectives including Gigabit Ethernet, USB port, RS-232 and RS-485 interfaces. I/O expansion is available by using our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. In addition it is designed to operate over a wide -10°C to 60°C ambient temperature range; the fanless design offers the ultimate in reliability with no moving parts.
Moreover, the VP-4238-CE7 / VP-6238-CE7 are equipped with 3 I/O slots that can be used to integrate with high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series) to meet different requirements from customers.
